PDF Publication Title:
Text from PDF Page: 035

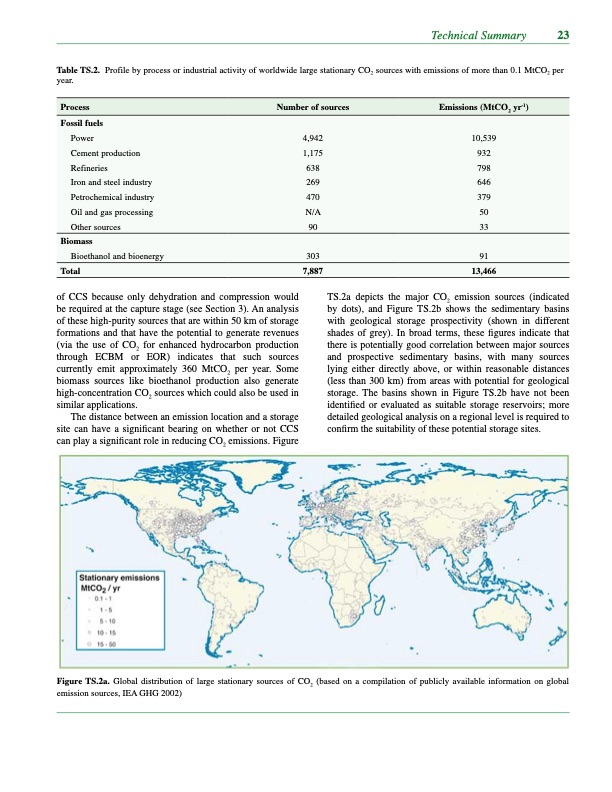

Technical Summary 23 Table TS.2. Profile by process or industrial activity of worldwide large stationary CO2 sources with emissions of more than 0.1 MtCO2 per year. Process Number of sources Emissions (MtCO2 yr-1) Fossil fuels Power 4,942 10,539 Cement production 1,175 932 Refineries 638 798 Iron and steel industry 269 646 Petrochemical industry 470 379 Oil and gas processing N/A 50 Other sources 90 33 Biomass Bioethanol and bioenergy 303 91 Total 7,887 13,466 TS.2a depicts the major CO2 emission sources (indicated by dots), and Figure TS.2b shows the sedimentary basins with geological storage prospectivity (shown in different shades of grey). In broad terms, these figures indicate that there is potentially good correlation between major sources and prospective sedimentary basins, with many sources lying either directly above, or within reasonable distances (less than 300 km) from areas with potential for geological storage. The basins shown in Figure TS.2b have not been identified or evaluated as suitable storage reservoirs; more detailed geological analysis on a regional level is required to confirm the suitability of these potential storage sites. Figure TS.2a. Global distribution of large stationary sources of CO2 (based on a compilation of publicly available information on global emission sources, IEA GHG 2002) of CCS because only dehydration and compression would be required at the capture stage (see Section 3). An analysis of these high-purity sources that are within 50 km of storage formations and that have the potential to generate revenues (via the use of CO2 for enhanced hydrocarbon production through ECBM or EOR) indicates that such sources currently emit approximately 360 MtCO2 per year. Some biomass sources like bioethanol production also generate high-concentration CO2 sources which could also be used in similar applications. The distance between an emission location and a storage site can have a significant bearing on whether or not CCS can play a significant role in reducing CO2 emissions. FigurePDF Image | CARBON DIOXIDE CAPTURE AND STORAGE
