Text from PDF Page: 230

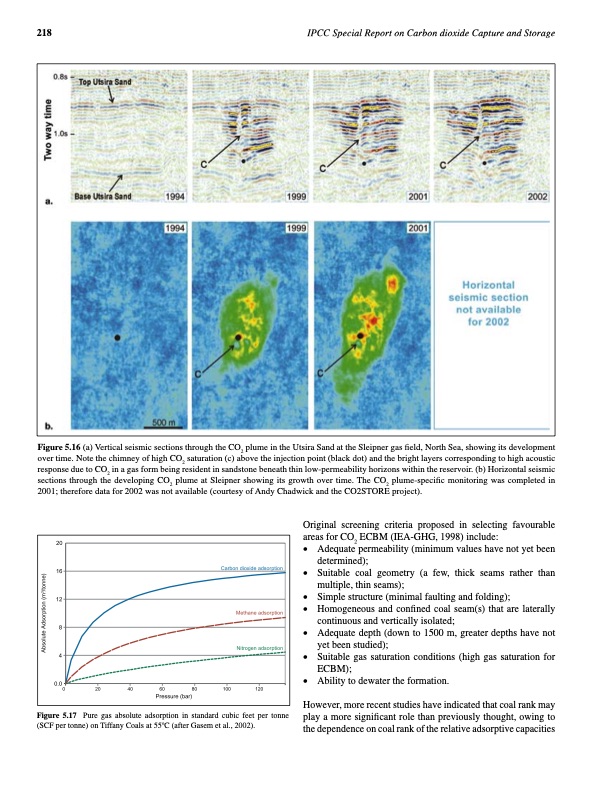

218 IPCC Special Report on Carbon dioxide Capture and Storage Figure 5.16 (a) Vertical seismic sections through the CO2 plume in the Utsira Sand at the Sleipner gas field, North Sea, showing its development over time. Note the chimney of high CO2 saturation (c) above the injection point (black dot) and the bright layers corresponding to high acoustic response due to CO2 in a gas form being resident in sandstone beneath thin low-permeability horizons within the reservoir. (b) Horizontal seismic sections through the developing CO2 plume at Sleipner showing its growth over time. The CO2 plume-specific monitoring was completed in 2001; therefore data for 2002 was not available (courtesy of Andy Chadwick and the CO2STORE project). Original screening criteria proposed in selecting favourable areas for CO2 ECBM (IEA-GHG, 1998) include: • Adequate permeability (minimum values have not yet been determined); • Suitable coal geometry (a few, thick seams rather than multiple, thin seams); • Simple structure (minimal faulting and folding); • Homogeneous and confined coal seam(s) that are laterally continuous and vertically isolated; • Adequate depth (down to 1500 m, greater depths have not yet been studied); • Suitable gas saturation conditions (high gas saturation for Figure 5.17 Pure gas absolute adsorption in standard cubic feet per tonne (SCF per tonne) on Tiffany Coals at 55oC (after Gasem et al., 2002). However, more recent studies have indicated that coal rank may play a more significant role than previously thought, owing to the dependence on coal rank of the relative adsorptive capacities ECBM); • Ability to dewater the formation.PDF Image | CARBON DIOXIDE CAPTURE AND STORAGE
