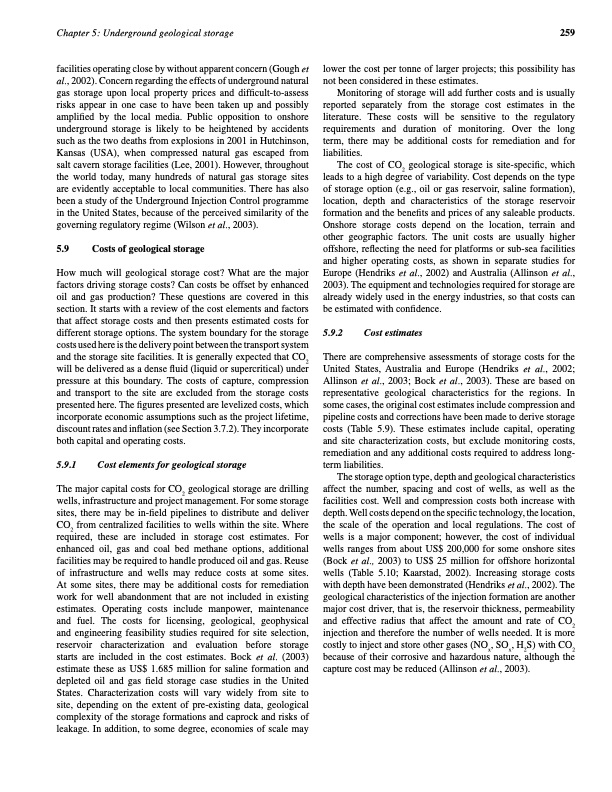

Chapter 5: Underground geological storage 259 facilities operating close by without apparent concern (Gough et al., 2002). Concern regarding the effects of underground natural gas storage upon local property prices and difficult-to-assess risks appear in one case to have been taken up and possibly amplified by the local media. Public opposition to onshore underground storage is likely to be heightened by accidents such as the two deaths from explosions in 2001 in Hutchinson, Kansas (USA), when compressed natural gas escaped from salt cavern storage facilities (Lee, 2001). However, throughout the world today, many hundreds of natural gas storage sites are evidently acceptable to local communities. There has also been a study of the Underground Injection Control programme in the United States, because of the perceived similarity of the governing regulatory regime (Wilson et al., 2003). 5.9 Costs of geological storage How much will geological storage cost? What are the major factors driving storage costs? Can costs be offset by enhanced oil and gas production? These questions are covered in this section. It starts with a review of the cost elements and factors that affect storage costs and then presents estimated costs for different storage options. The system boundary for the storage costs used here is the delivery point between the transport system and the storage site facilities. It is generally expected that CO2 will be delivered as a dense fluid (liquid or supercritical) under pressure at this boundary. The costs of capture, compression and transport to the site are excluded from the storage costs presented here. The figures presented are levelized costs, which incorporate economic assumptions such as the project lifetime, discount rates and inflation (see Section 3.7.2). They incorporate both capital and operating costs. 5.9.1 Cost elements for geological storage The major capital costs for CO2 geological storage are drilling wells, infrastructure and project management. For some storage sites, there may be in-field pipelines to distribute and deliver CO2 from centralized facilities to wells within the site. Where required, these are included in storage cost estimates. For enhanced oil, gas and coal bed methane options, additional facilities may be required to handle produced oil and gas. Reuse of infrastructure and wells may reduce costs at some sites. At some sites, there may be additional costs for remediation work for well abandonment that are not included in existing estimates. Operating costs include manpower, maintenance and fuel. The costs for licensing, geological, geophysical and engineering feasibility studies required for site selection, reservoir characterization and evaluation before storage starts are included in the cost estimates. Bock et al. (2003) estimate these as US$ 1.685 million for saline formation and depleted oil and gas field storage case studies in the United States. Characterization costs will vary widely from site to site, depending on the extent of pre-existing data, geological complexity of the storage formations and caprock and risks of leakage. In addition, to some degree, economies of scale may lower the cost per tonne of larger projects; this possibility has not been considered in these estimates. Monitoring of storage will add further costs and is usually reported separately from the storage cost estimates in the literature. These costs will be sensitive to the regulatory requirements and duration of monitoring. Over the long term, there may be additional costs for remediation and for liabilities. The cost of CO2 geological storage is site-specific, which leads to a high degree of variability. Cost depends on the type of storage option (e.g., oil or gas reservoir, saline formation), location, depth and characteristics of the storage reservoir formation and the benefits and prices of any saleable products. Onshore storage costs depend on the location, terrain and other geographic factors. The unit costs are usually higher offshore, reflecting the need for platforms or sub-sea facilities and higher operating costs, as shown in separate studies for Europe (Hendriks et al., 2002) and Australia (Allinson et al., 2003). The equipment and technologies required for storage are already widely used in the energy industries, so that costs can be estimated with confidence. 5.9.2 Cost estimates There are comprehensive assessments of storage costs for the United States, Australia and Europe (Hendriks et al., 2002; Allinson et al., 2003; Bock et al., 2003). These are based on representative geological characteristics for the regions. In some cases, the original cost estimates include compression and pipeline costs and corrections have been made to derive storage costs (Table 5.9). These estimates include capital, operating and site characterization costs, but exclude monitoring costs, remediation and any additional costs required to address long- term liabilities. The storage option type, depth and geological characteristics affect the number, spacing and cost of wells, as well as the facilities cost. Well and compression costs both increase with depth. Well costs depend on the specific technology, the location, the scale of the operation and local regulations. The cost of wells is a major component; however, the cost of individual wells ranges from about US$ 200,000 for some onshore sites (Bock et al., 2003) to US$ 25 million for offshore horizontal wells (Table 5.10; Kaarstad, 2002). Increasing storage costs with depth have been demonstrated (Hendriks et al., 2002). The geological characteristics of the injection formation are another major cost driver, that is, the reservoir thickness, permeability and effective radius that affect the amount and rate of CO2 injection and therefore the number of wells needed. It is more costly to inject and store other gases (NOx, SOx, H2S) with CO2 because of their corrosive and hazardous nature, although the capture cost may be reduced (Allinson et al., 2003).PDF Image | CARBON DIOXIDE CAPTURE AND STORAGE
