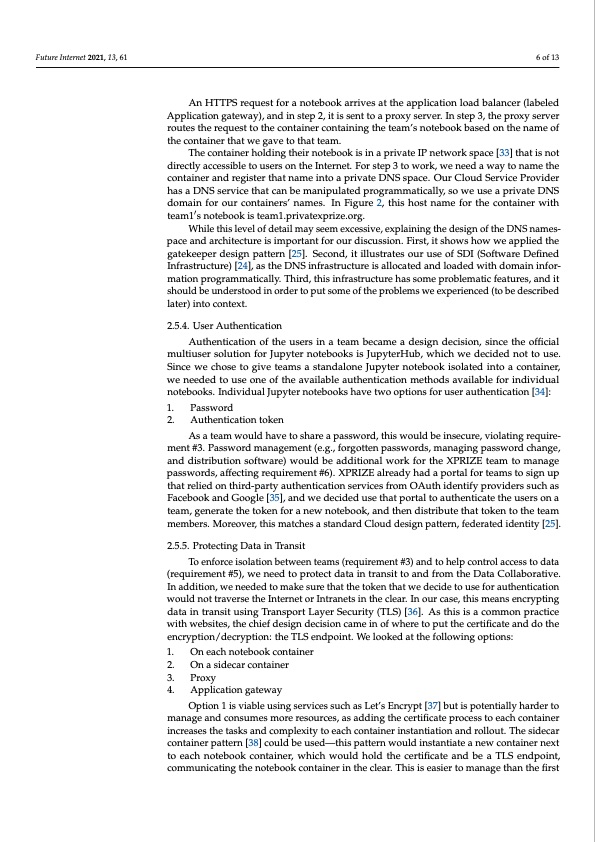

Text from PDF Page: 006
Future Internet 2021, 13, 61 6 of 13 An HTTPS request for a notebook arrives at the application load balancer (labeled Application gateway), and in step 2, it is sent to a proxy server. In step 3, the proxy server routes the request to the container containing the team’s notebook based on the name of the container that we gave to that team. The container holding their notebook is in a private IP network space [33] that is not directly accessible to users on the Internet. For step 3 to work, we need a way to name the container and register that name into a private DNS space. Our Cloud Service Provider has a DNS service that can be manipulated programmatically, so we use a private DNS domain for our containers’ names. In Figure 2, this host name for the container with team1′s notebook is team1.privatexprize.org. While this level of detail may seem excessive, explaining the design of the DNS names- pace and architecture is important for our discussion. First, it shows how we applied the gatekeeper design pattern [25]. Second, it illustrates our use of SDI (Software Defined Infrastructure) [24], as the DNS infrastructure is allocated and loaded with domain infor- mation programmatically. Third, this infrastructure has some problematic features, and it should be understood in order to put some of the problems we experienced (to be described later) into context. 2.5.4. User Authentication Authentication of the users in a team became a design decision, since the official multiuser solution for Jupyter notebooks is JupyterHub, which we decided not to use. Since we chose to give teams a standalone Jupyter notebook isolated into a container, we needed to use one of the available authentication methods available for individual notebooks. Individual Jupyter notebooks have two options for user authentication [34]: 1. Password 2. Authentication token As a team would have to share a password, this would be insecure, violating require- ment #3. Password management (e.g., forgotten passwords, managing password change, and distribution software) would be additional work for the XPRIZE team to manage passwords, affecting requirement #6). XPRIZE already had a portal for teams to sign up that relied on third-party authentication services from OAuth identify providers such as Facebook and Google [35], and we decided use that portal to authenticate the users on a team, generate the token for a new notebook, and then distribute that token to the team members. Moreover, this matches a standard Cloud design pattern, federated identity [25]. 2.5.5. Protecting Data in Transit To enforce isolation between teams (requirement #3) and to help control access to data (requirement #5), we need to protect data in transit to and from the Data Collaborative. In addition, we needed to make sure that the token that we decide to use for authentication would not traverse the Internet or Intranets in the clear. In our case, this means encrypting data in transit using Transport Layer Security (TLS) [36]. As this is a common practice with websites, the chief design decision came in of where to put the certificate and do the encryption/decryption: the TLS endpoint. We looked at the following options: 1. 2. 3. 4. On each notebook container On a sidecar container Proxy Application gateway Option 1 is viable using services such as Let’s Encrypt [37] but is potentially harder to manage and consumes more resources, as adding the certificate process to each container increases the tasks and complexity to each container instantiation and rollout. The sidecar container pattern [38] could be used—this pattern would instantiate a new container next to each notebook container, which would hold the certificate and be a TLS endpoint, communicating the notebook container in the clear. This is easier to manage than the firstPDF Image | Future Internet
