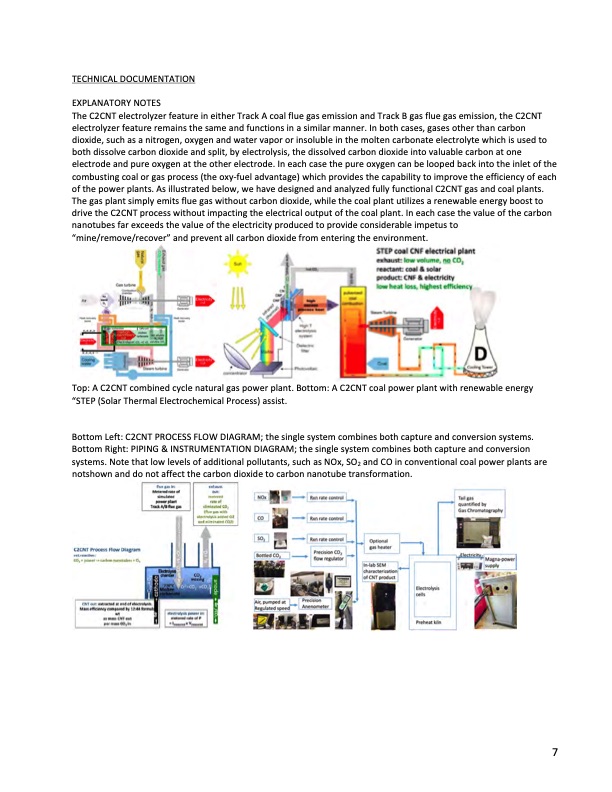

TECHNICAL DOCUMENTATION EXPLANATORY NOTES The C2CNT electrolyzer feature in either Track A coal flue gas emission and Track B gas flue gas emission, the C2CNT electrolyzer feature remains the same and functions in a similar manner. In both cases, gases other than carbon dioxide, such as a nitrogen, oxygen and water vapor or insoluble in the molten carbonate electrolyte which is used to both dissolve carbon dioxide and split, by electrolysis, the dissolved carbon dioxide into valuable carbon at one electrode and pure oxygen at the other electrode. In each case the pure oxygen can be looped back into the inlet of the combusting coal or gas process (the oxy-fuel advantage) which provides the capability to improve the efficiency of each of the power plants. As illustrated below, we have designed and analyzed fully functional C2CNT gas and coal plants. The gas plant simply emits flue gas without carbon dioxide, while the coal plant utilizes a renewable energy boost to drive the C2CNT process without impacting the electrical output of the coal plant. In each case the value of the carbon nanotubes far exceeds the value of the electricity produced to provide considerable impetus to “mine/remove/recover” and prevent all carbon dioxide from entering the environment. Top: A C2CNT combined cycle natural gas power plant. Bottom: A C2CNT coal power plant with renewable energy “STEP (Solar Thermal Electrochemical Process) assist. Bottom Left: C2CNT PROCESS FLOW DIAGRAM; the single system combines both capture and conversion systems. Bottom Right: PIPING & INSTRUMENTATION DIAGRAM; the single system combines both capture and conversion systems. Note that low levels of additional pollutants, such as NOx, SO2 and CO in conventional coal power plants are notshown and do not affect the carbon dioxide to carbon nanotube transformation. 7PDF Image | Xprize
