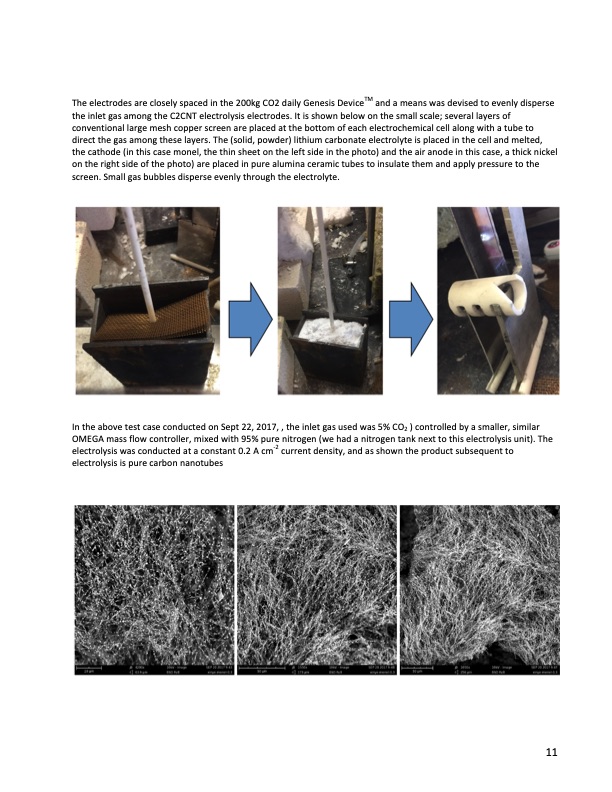

The electrodes are closely spaced in the 200kg CO2 daily Genesis DeviceTM and a means was devised to evenly disperse the inlet gas among the C2CNT electrolysis electrodes. It is shown below on the small scale; several layers of conventional large mesh copper screen are placed at the bottom of each electrochemical cell along with a tube to direct the gas among these layers. The (solid, powder) lithium carbonate electrolyte is placed in the cell and melted, the cathode (in this case monel, the thin sheet on the left side in the photo) and the air anode in this case, a thick nickel on the right side of the photo) are placed in pure alumina ceramic tubes to insulate them and apply pressure to the screen. Small gas bubbles disperse evenly through the electrolyte. In the above test case conducted on Sept 22, 2017, , the inlet gas used was 5% CO2 ) controlled by a smaller, similar OMEGA mass flow controller, mixed with 95% pure nitrogen (we had a nitrogen tank next to this electrolysis unit). The electrolysis was conducted at a constant 0.2 A cm-2 current density, and as shown the product subsequent to electrolysis is pure carbon nanotubes 11PDF Image | Xprize
