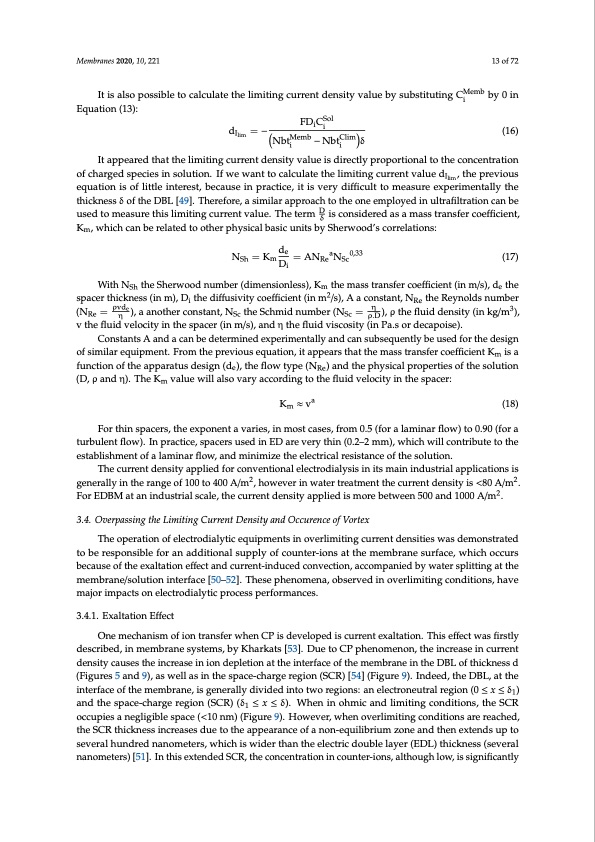

Membranes 2020, 10, 221 13 of 72 It is also possible to calculate the limiting current density value by substituting CMemb by 0 in i Equation (13): dIlim =−NbtMemb−NbtClimδ ii (16) FDi CSol i It appeared that the limiting current density value is directly proportional to the concentration of charged species in solution. If we want to calculate the limiting current value dIlim , the previous equation is of little interest, because in practice, it is very difficult to measure experimentally the thickness δ of the DBL [49]. Therefore, a similar approach to the one employed in ultrafiltration can be used to measure this limiting current value. The term Dδ is considered as a mass transfer coefficient, Km, which can be related to other physical basic units by Sherwood’s correlations: N =K de =AN aN 0,33 (17) Sh mDi Re Sc With NSh the Sherwood number (dimensionless), Km the mass transfer coefficient (in m/s), de the spacer thickness (in m), Di the diffusivity coefficient (in m2/s), A a constant, NRe the Reynolds number (NRe = ρvde ), a another constant, NSc the Schmid number (NSc = η ), ρ the fluid density (in kg/m3), η ρ.D v the fluid velocity in the spacer (in m/s), and η the fluid viscosity (in Pa.s or decapoise). Constants A and a can be determined experimentally and can subsequently be used for the design of similar equipment. From the previous equation, it appears that the mass transfer coefficient Km is a function of the apparatus design (de), the flow type (NRe) and the physical properties of the solution (D, ρ and η). The Km value will also vary according to the fluid velocity in the spacer: Km ≈ va (18) For thin spacers, the exponent a varies, in most cases, from 0.5 (for a laminar flow) to 0.90 (for a turbulent flow). In practice, spacers used in ED are very thin (0.2–2 mm), which will contribute to the establishment of a laminar flow, and minimize the electrical resistance of the solution. The current density applied for conventional electrodialysis in its main industrial applications is generally in the range of 100 to 400 A/m2, however in water treatment the current density is <80 A/m2. For EDBM at an industrial scale, the current density applied is more between 500 and 1000 A/m2. 3.4. Overpassing the Limiting Current Density and Occurence of Vortex The operation of electrodialytic equipments in overlimiting current densities was demonstrated to be responsible for an additional supply of counter-ions at the membrane surface, which occurs because of the exaltation effect and current-induced convection, accompanied by water splitting at the membrane/solution interface [50–52]. These phenomena, observed in overlimiting conditions, have major impacts on electrodialytic process performances. 3.4.1. Exaltation Effect One mechanism of ion transfer when CP is developed is current exaltation. This effect was firstly described, in membrane systems, by Kharkats [53]. Due to CP phenomenon, the increase in current density causes the increase in ion depletion at the interface of the membrane in the DBL of thickness d (Figures 5 and 9), as well as in the space-charge region (SCR) [54] (Figure 9). Indeed, the DBL, at the interface of the membrane, is generally divided into two regions: an electroneutral region (0 ≤ x ≤ δ1) and the space-charge region (SCR) (δ1 ≤ x ≤ δ). When in ohmic and limiting conditions, the SCR occupies a negligible space (<10 nm) (Figure 9). However, when overlimiting conditions are reached, the SCR thickness increases due to the appearance of a non-equilibrium zone and then extends up to several hundred nanometers, which is wider than the electric double layer (EDL) thickness (several nanometers) [51]. In this extended SCR, the concentration in counter-ions, although low, is significantlyPDF Image | Electrodialytic Processes
