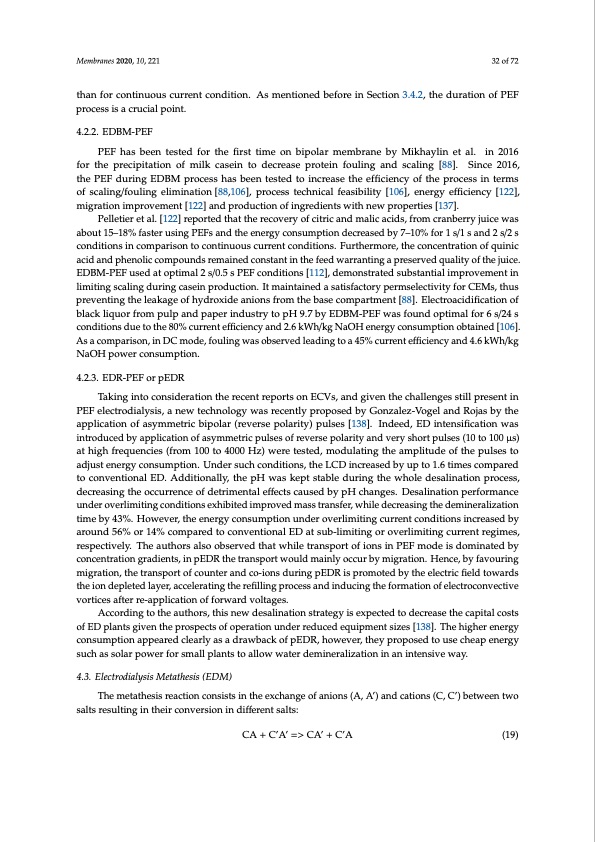

Membranes 2020, 10, 221 32 of 72 than for continuous current condition. As mentioned before in Section 3.4.2, the duration of PEF process is a crucial point. 4.2.2. EDBM-PEF PEF has been tested for the first time on bipolar membrane by Mikhaylin et al. in 2016 for the precipitation of milk casein to decrease protein fouling and scaling [88]. Since 2016, the PEF during EDBM process has been tested to increase the efficiency of the process in terms of scaling/fouling elimination [88,106], process technical feasibility [106], energy efficiency [122], migration improvement [122] and production of ingredients with new properties [137]. Pelletier et al. [122] reported that the recovery of citric and malic acids, from cranberry juice was about 15–18% faster using PEFs and the energy consumption decreased by 7–10% for 1 s/1 s and 2 s/2 s conditions in comparison to continuous current conditions. Furthermore, the concentration of quinic acid and phenolic compounds remained constant in the feed warranting a preserved quality of the juice. EDBM-PEF used at optimal 2 s/0.5 s PEF conditions [112], demonstrated substantial improvement in limiting scaling during casein production. It maintained a satisfactory permselectivity for CEMs, thus preventing the leakage of hydroxide anions from the base compartment [88]. Electroacidification of black liquor from pulp and paper industry to pH 9.7 by EDBM-PEF was found optimal for 6 s/24 s conditions due to the 80% current efficiency and 2.6 kWh/kg NaOH energy consumption obtained [106]. As a comparison, in DC mode, fouling was observed leading to a 45% current efficiency and 4.6 kWh/kg NaOH power consumption. 4.2.3. EDR-PEF or pEDR Taking into consideration the recent reports on ECVs, and given the challenges still present in PEF electrodialysis, a new technology was recently proposed by Gonzalez-Vogel and Rojas by the application of asymmetric bipolar (reverse polarity) pulses [138]. Indeed, ED intensification was introduced by application of asymmetric pulses of reverse polarity and very short pulses (10 to 100 μs) at high frequencies (from 100 to 4000 Hz) were tested, modulating the amplitude of the pulses to adjust energy consumption. Under such conditions, the LCD increased by up to 1.6 times compared to conventional ED. Additionally, the pH was kept stable during the whole desalination process, decreasing the occurrence of detrimental effects caused by pH changes. Desalination performance under overlimiting conditions exhibited improved mass transfer, while decreasing the demineralization time by 43%. However, the energy consumption under overlimiting current conditions increased by around 56% or 14% compared to conventional ED at sub-limiting or overlimiting current regimes, respectively. The authors also observed that while transport of ions in PEF mode is dominated by concentration gradients, in pEDR the transport would mainly occur by migration. Hence, by favouring migration, the transport of counter and co-ions during pEDR is promoted by the electric field towards the ion depleted layer, accelerating the refilling process and inducing the formation of electroconvective vortices after re-application of forward voltages. According to the authors, this new desalination strategy is expected to decrease the capital costs of ED plants given the prospects of operation under reduced equipment sizes [138]. The higher energy consumption appeared clearly as a drawback of pEDR, however, they proposed to use cheap energy such as solar power for small plants to allow water demineralization in an intensive way. 4.3. Electrodialysis Metathesis (EDM) The metathesis reaction consists in the exchange of anions (A, A’) and cations (C, C’) between two salts resulting in their conversion in different salts: CA + C’A’ => CA’ + C’A (19)PDF Image | Electrodialytic Processes
