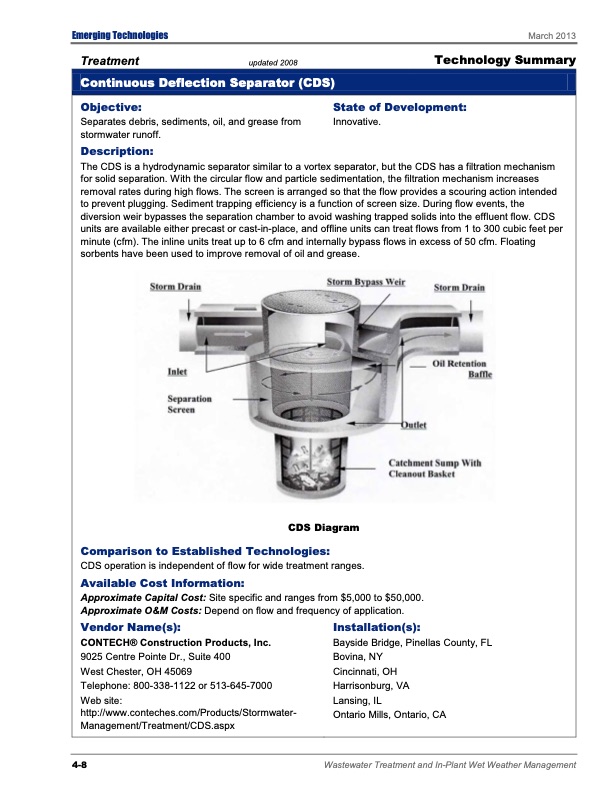

Emerging Technologies March 2013 Treatment updated 2008 Technology Summary Continuous Deflection Separator (CDS) Objective: State of Development: Separates debris, sediments, oil, and grease from Innovative. stormwater runoff. Description: The CDS is a hydrodynamic separator similar to a vortex separator, but the CDS has a filtration mechanism for solid separation. With the circular flow and particle sedimentation, the filtration mechanism increases removal rates during high flows. The screen is arranged so that the flow provides a scouring action intended to prevent plugging. Sediment trapping efficiency is a function of screen size. During flow events, the diversion weir bypasses the separation chamber to avoid washing trapped solids into the effluent flow. CDS units are available either precast or cast-in-place, and offline units can treat flows from 1 to 300 cubic feet per minute (cfm). The inline units treat up to 6 cfm and internally bypass flows in excess of 50 cfm. Floating sorbents have been used to improve removal of oil and grease. CDS Diagram Comparison to Established Technologies: CDS operation is independent of flow for wide treatment ranges. Available Cost Information: Approximate Capital Cost: Site specific and ranges from $5,000 to $50,000. Approximate O&M Costs: Depend on flow and frequency of application. Vendor Name(s): CONTECH® Construction Products, Inc. 9025 Centre Pointe Dr., Suite 400 West Chester, OH 45069 Telephone: 800-338-1122 or 513-645-7000 Web site: http://www.conteches.com/Products/Stormwater- Management/Treatment/CDS.aspx Installation(s): Bayside Bridge, Pinellas County, FL Bovina, NY Cincinnati, OH Harrisonburg, VA Lansing, IL Ontario Mills, Ontario, CA 4-8 Wastewater Treatment and In-Plant Wet Weather ManagementPDF Image | Emerging Tech for Wastewater Treatment
