PDF Publication Title:

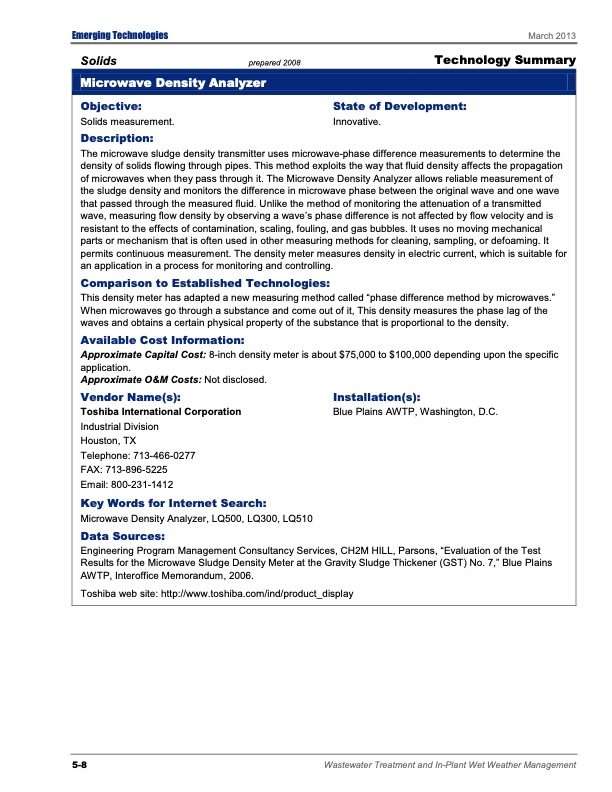

Text from PDF Page: 146
Emerging Technologies Solids prepared 2008 Microwave Density Analyzer Objective: Solids measurement. Description: March 2013 Technology Summary State of Development: Innovative. The microwave sludge density transmitter uses microwave-phase difference measurements to determine the density of solids flowing through pipes. This method exploits the way that fluid density affects the propagation of microwaves when they pass through it. The Microwave Density Analyzer allows reliable measurement of the sludge density and monitors the difference in microwave phase between the original wave and one wave that passed through the measured fluid. Unlike the method of monitoring the attenuation of a transmitted wave, measuring flow density by observing a wave’s phase difference is not affected by flow velocity and is resistant to the effects of contamination, scaling, fouling, and gas bubbles. It uses no moving mechanical parts or mechanism that is often used in other measuring methods for cleaning, sampling, or defoaming. It permits continuous measurement. The density meter measures density in electric current, which is suitable for an application in a process for monitoring and controlling. Comparison to Established Technologies: This density meter has adapted a new measuring method called “phase difference method by microwaves.” When microwaves go through a substance and come out of it, This density measures the phase lag of the waves and obtains a certain physical property of the substance that is proportional to the density. Available Cost Information: Approximate Capital Cost: 8-inch density meter is about $75,000 to $100,000 depending upon the specific application. Approximate O&M Costs: Not disclosed. Vendor Name(s): Toshiba International Corporation Industrial Division Houston, TX Telephone: 713-466-0277 FAX: 713-896-5225 Email: 800-231-1412 Key Words for Internet Search: Microwave Density Analyzer, LQ500, LQ300, LQ510 Data Sources: Installation(s): Blue Plains AWTP, Washington, D.C. Engineering Program Management Consultancy Services, CH2M HILL, Parsons, “Evaluation of the Test Results for the Microwave Sludge Density Meter at the Gravity Sludge Thickener (GST) No. 7,” Blue Plains AWTP, Interoffice Memorandum, 2006. Toshiba web site: http://www.toshiba.com/ind/product_display 5-8 Wastewater Treatment and In-Plant Wet Weather ManagementPDF Image | Emerging Tech for Wastewater Treatment
PDF Search Title:
Emerging Tech for Wastewater TreatmentOriginal File Name Searched:
emerging-tech-wastewater-treatment-management.pdfDIY PDF Search: Google It | Yahoo | Bing
