PDF Publication Title:
Text from PDF Page: 014

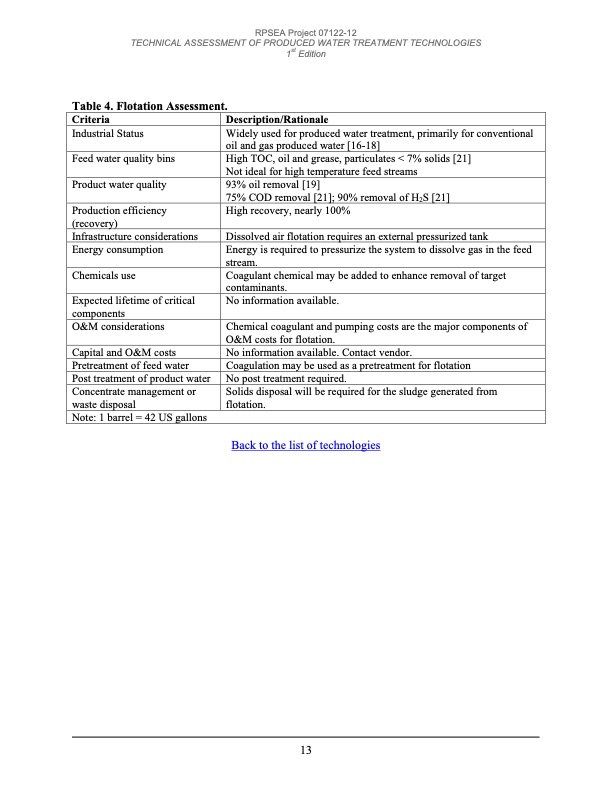

RPSEA Project 07122-12 TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES 1st Edition Table 4. Flotation Assessment. Criteria Industrial Status Feed water quality bins Product water quality Production efficiency (recovery) Infrastructure considerations Energy consumption Chemicals use Expected lifetime of critical components O&M considerations Capital and O&M costs Pretreatment of feed water Post treatment of product water Concentrate management or waste disposal Note: 1 barrel = 42 US gallons Description/Rationale Widely used for produced water treatment, primarily for conventional oil and gas produced water [16-18] High TOC, oil and grease, particulates < 7% solids [21] Not ideal for high temperature feed streams 93% oil removal [19] 75% COD removal [21]; 90% removal of H2S [21] High recovery, nearly 100% Dissolved air flotation requires an external pressurized tank Energy is required to pressurize the system to dissolve gas in the feed stream. Coagulant chemical may be added to enhance removal of target contaminants. No information available. Chemical coagulant and pumping costs are the major components of O&M costs for flotation. No information available. Contact vendor. Coagulation may be used as a pretreatment for flotation No post treatment required. Solids disposal will be required for the sludge generated from flotation. Back to the list of technologies 13PDF Image | TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES
