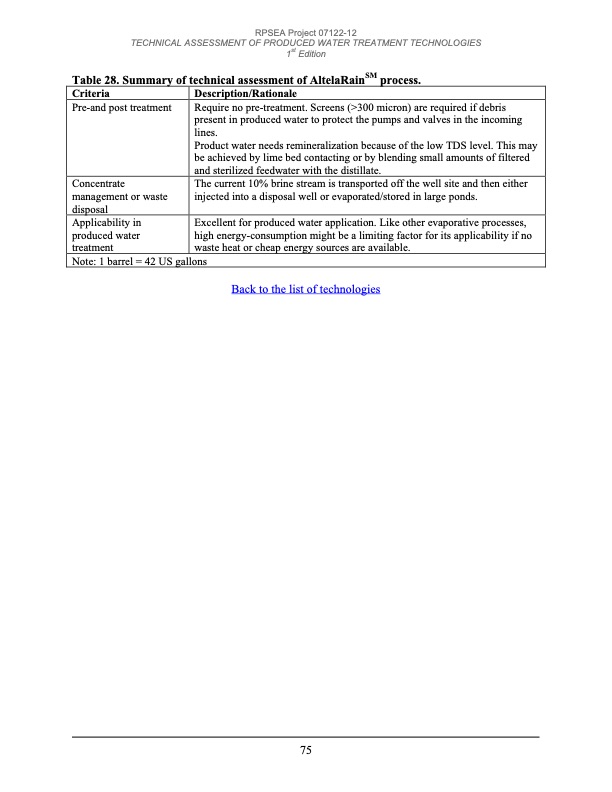

RPSEA Project 07122-12 TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES 1st Edition Table 28. Summary of technical assessment of AltelaRainSM process. Criteria Description/Rationale The current 10% brine stream is transported off the well site and then either injected into a disposal well or evaporated/stored in large ponds. Excellent for produced water application. Like other evaporative processes, high energy-consumption might be a limiting factor for its applicability if no waste heat or cheap energy sources are available. Back to the list of technologies Pre-and post treatment Require no pre-treatment. Screens (>300 micron) are required if debris present in produced water to protect the pumps and valves in the incoming lines. Product water needs remineralization because of the low TDS level. This may be achieved by lime bed contacting or by blending small amounts of filtered and sterilized feedwater with the distillate. Concentrate management or waste disposal Applicability in produced water treatment Note: 1 barrel = 42 US gallons 75PDF Image | TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES
