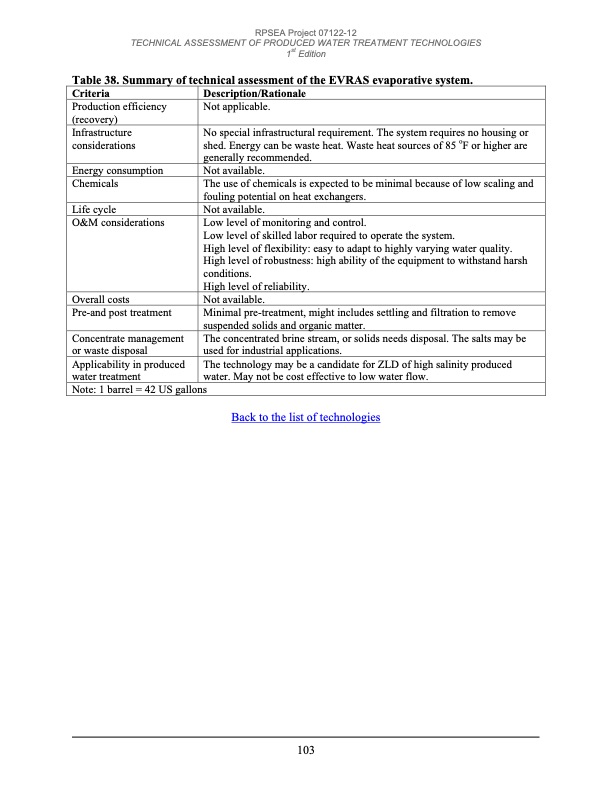

RPSEA Project 07122-12 TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES 1st Edition Table 38. Summary of technical assessment of the EVRAS evaporative system. Criteria Production efficiency (recovery) Infrastructure considerations Energy consumption Chemicals Life cycle Overall costs Pre-and post treatment Concentrate management or waste disposal Applicability in produced water treatment Description/Rationale Not applicable. No special infrastructural requirement. The system requires no housing or shed. Energy can be waste heat. Waste heat sources of 85 oF or higher are generally recommended. Not available. The use of chemicals is expected to be minimal because of low scaling and fouling potential on heat exchangers. Not available. Not available. Minimal pre-treatment, might includes settling and filtration to remove suspended solids and organic matter. The concentrated brine stream, or solids needs disposal. The salts may be used for industrial applications. The technology may be a candidate for ZLD of high salinity produced water. May not be cost effective to low water flow. O&M considerations Low level of monitoring and control. Low level of skilled labor required to operate the system. High level of flexibility: easy to adapt to highly varying water quality. High level of robustness: high ability of the equipment to withstand harsh conditions. High level of reliability. Note: 1 barrel = 42 US gallons Back to the list of technologies 103PDF Image | TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES
