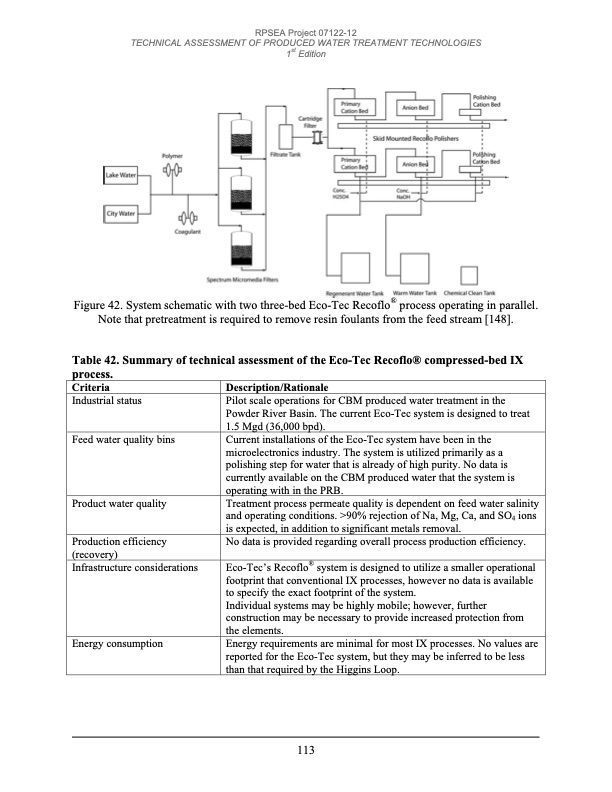

RPSEA Project 07122-12 TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES 1st Edition Figure 42. System schematic with two three-bed Eco-Tec Recoflo® process operating in parallel. Note that pretreatment is required to remove resin foulants from the feed stream [148]. Table 42. Summary of technical assessment of the Eco-Tec Recoflo® compressed-bed IX process. Criteria Industrial status Product water quality Production efficiency (recovery) Energy consumption Description/Rationale Pilot scale operations for CBM produced water treatment in the Powder River Basin. The current Eco-Tec system is designed to treat 1.5 Mgd (36,000 bpd). Treatment process permeate quality is dependent on feed water salinity and operating conditions. >90% rejection of Na, Mg, Ca, and SO4 ions is expected, in addition to significant metals removal. No data is provided regarding overall process production efficiency. Energy requirements are minimal for most IX processes. No values are reported for the Eco-Tec system, but they may be inferred to be less than that required by the Higgins Loop. Feed water quality bins Current installations of the Eco-Tec system have been in the microelectronics industry. The system is utilized primarily as a polishing step for water that is already of high purity. No data is currently available on the CBM produced water that the system is operating with in the PRB. Infrastructure considerations Eco-Tec’s Recoflo® system is designed to utilize a smaller operational footprint that conventional IX processes, however no data is available to specify the exact footprint of the system. Individual systems may be highly mobile; however, further construction may be necessary to provide increased protection from the elements. 113PDF Image | TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES
