Text from PDF Page: 119

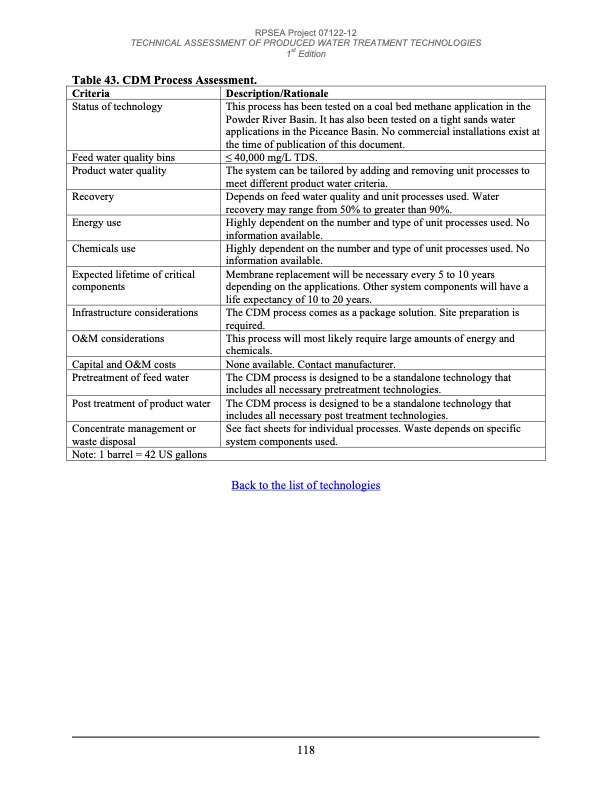

RPSEA Project 07122-12 TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES 1st Edition Table 43. CDM Process Assessment. Criteria Feed water quality bins Product water quality Recovery Energy use Chemicals use Expected lifetime of critical components Infrastructure considerations O&M considerations Capital and O&M costs Pretreatment of feed water Post treatment of product water Concentrate management or waste disposal Note: 1 barrel = 42 US gallons Description/Rationale ≤ 40,000 mg/L TDS. The system can be tailored by adding and removing unit processes to meet different product water criteria. Depends on feed water quality and unit processes used. Water recovery may range from 50% to greater than 90%. Highly dependent on the number and type of unit processes used. No information available. Highly dependent on the number and type of unit processes used. No information available. Membrane replacement will be necessary every 5 to 10 years depending on the applications. Other system components will have a life expectancy of 10 to 20 years. The CDM process comes as a package solution. Site preparation is required. This process will most likely require large amounts of energy and chemicals. None available. Contact manufacturer. The CDM process is designed to be a standalone technology that includes all necessary pretreatment technologies. The CDM process is designed to be a standalone technology that includes all necessary post treatment technologies. See fact sheets for individual processes. Waste depends on specific system components used. Back to the list of technologies Status of technology This process has been tested on a coal bed methane application in the Powder River Basin. It has also been tested on a tight sands water applications in the Piceance Basin. No commercial installations exist at the time of publication of this document. 118PDF Image | TECHNICAL ASSESSMENT OF PRODUCED WATER TREATMENT TECHNOLOGIES
