PDF Publication Title:
Text from PDF Page: 008

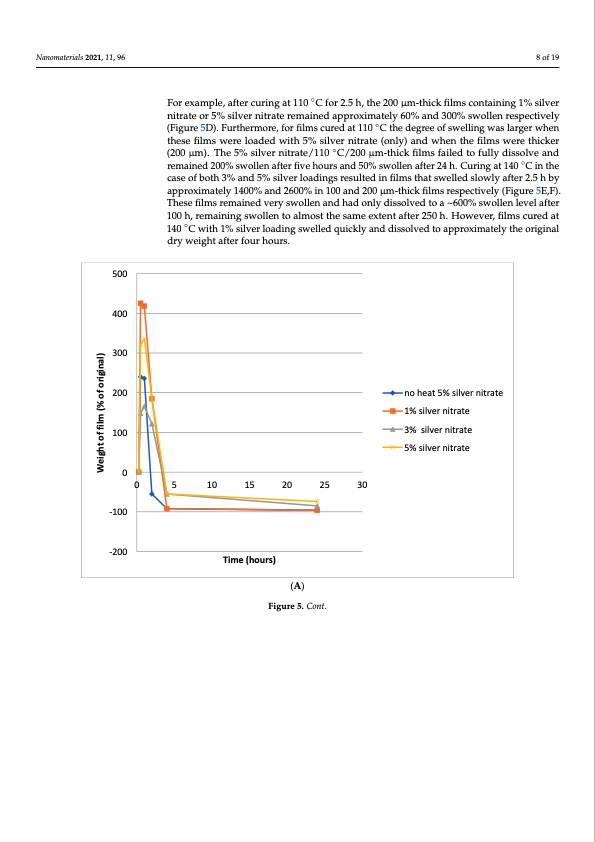

Nanomaterials 2021, 11, x FOR PEER REVIEW 8 of 20 Nanomaterials 2021, 11, 96 8 of 19 nitrate loading. (Figure 5A,B). A similar swelling profile was observed for films cured at 110 °C, except that the films dissolved more slowly than the films cured at 80 °C (Figure ◦ 5FCo,rDe)x.aFmorpelex,aamftpelrec,uarftinergcautr1in1g0 aCt 1f1o0r°2C.5fho,rt2h.e5 2h0,0thμem20-t0hμicmk -fitlhmicskcfoilnmtasincoingta1in%insgilv1e%r nitrate or 5% silver nitrate remained approximately 60% and 300% swollen respectively silver nitrate or 5% silver nitrate remained approximately 60% and 300% swollen respec- (Figure 5D). Furthermore, for films cured at 110 ◦C the degree of swelling was larger when tively (Figure 5D). Furthermore, for films cured at 110 °C the degree of swelling was larger these films were loaded with 5% silver nitrate (only) and when the films were thicker when these films were loaded with 5% silver nitrate (only) and when the films were (200 μm). The 5% silver nitrate/110 ◦C/200 μm-thick films failed to fully dissolve and thicker (200 μm). The 5% silver nitrate/110 °C/200 μm-thick films failed to fully dissolve remained 200% swollen after five hours and 50% swollen after 24 h. Curing at 140 ◦C in the and remained 200% swollen after five hours and 50% swollen after 24 h. Curing at 140 °C case of both 3% and 5% silver loadings resulted in films that swelled slowly after 2.5 h by in the case of both 3% and 5% silver loadings resulted in films that swelled slowly after approximately 1400% and 2600% in 100 and 200 μm-thick films respectively (Figure 5E,F). 2.5 h by approximately 1400% and 2600% in 100 and 200 μm-thick films respectively (Fig- These films remained very swollen and had only dissolved to a ~600% swollen level after ure 5E,F). These films remained very swollen and had only dissolved to a ~600% swollen 100 h, remaining swollen to almost the same extent after 250 h. However, films cured at level after 100 h, remaining swollen to almost the same extent after 250 h. However, films 140 ◦C with 1% silver loading swelled quickly and dissolved to approximately the original cured at 140 °C with 1% silver loading swelled quickly and dissolved to approximately dry weight after four hours. the original dry weight after four hours. 500 400 300 200 100 0 0 5 10 15 20 25 30 no heat 5% silver nitrate 1% silver nitrate 3% silver nitrate 5% silver nitrate -100 -200 Time (hours) (A) Figure 5. Cont. Weight of film (% of original)PDF Image | Hydrogel Forming Dressings Containing Silver Nanoparticles
PDF Search Title:
Hydrogel Forming Dressings Containing Silver NanoparticlesOriginal File Name Searched:
nanomaterials-11-00096.pdfDIY PDF Search: Google It | Yahoo | Bing
Turbine and System Plans CAD CAM: Special for this month, any plans are $10,000 for complete Cad/Cam blueprints. License is for one build. Try before you buy a production license. More Info
Waste Heat Power Technology: Organic Rankine Cycle uses waste heat to make electricity, shaft horsepower and cooling. More Info
All Turbine and System Products: Infinity Turbine ORD systems, turbine generator sets, build plans and more to use your waste heat from 30C to 100C. More Info
CO2 Phase Change Demonstrator: CO2 goes supercritical at 30 C. This is a experimental platform which you can use to demonstrate phase change with low heat. Includes integration area for small CO2 turbine, static generator, and more. This can also be used for a GTL Gas to Liquids experimental platform. More Info
Introducing the Infinity Turbine Products Infinity Turbine develops and builds systems for making power from waste heat. It also is working on innovative strategies for storing, making, and deploying energy. More Info
Need Strategy? Use our Consulting and analyst services Infinity Turbine LLC is pleased to announce its consulting and analyst services. We have worked in the renewable energy industry as a researcher, developing sales and markets, along with may inventions and innovations. More Info
Made in USA with Global Energy Millennial Web Engine These pages were made with the Global Energy Web PDF Engine using Filemaker (Claris) software.
Infinity Turbine Developing Spinning Disc Reactor SDR or Spinning Disc Reactors reduce processing time for liquid production of Silver Nanoparticles.
| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
