Text from PDF Page: 021

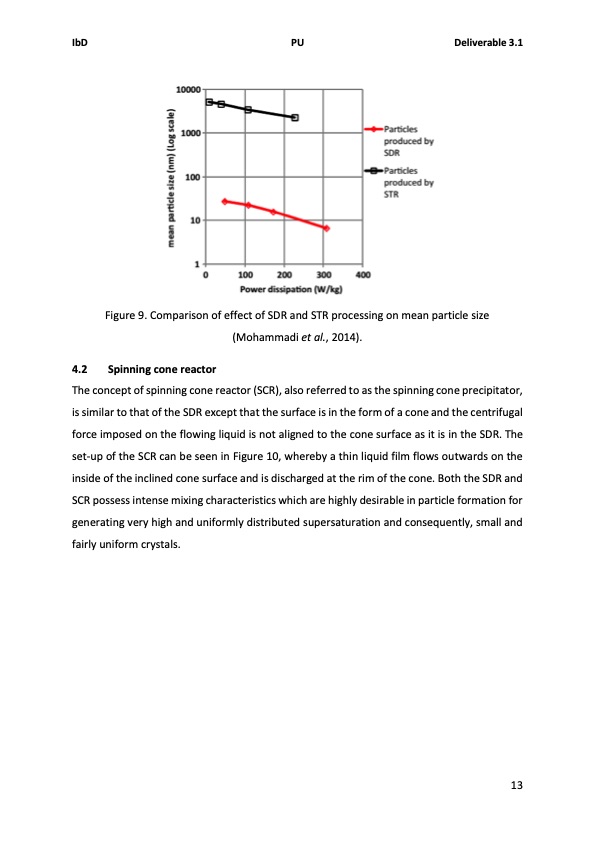

IbD PU Deliverable 3.1 Figure 9. Comparison of effect of SDR and STR processing on mean particle size (Mohammadi et al., 2014). 4.2 Spinning cone reactor The concept of spinning cone reactor (SCR), also referred to as the spinning cone precipitator, is similar to that of the SDR except that the surface is in the form of a cone and the centrifugal force imposed on the flowing liquid is not aligned to the cone surface as it is in the SDR. The set-up of the SCR can be seen in Figure 10, whereby a thin liquid film flows outwards on the inside of the inclined cone surface and is discharged at the rim of the cone. Both the SDR and SCR possess intense mixing characteristics which are highly desirable in particle formation for generating very high and uniformly distributed supersaturation and consequently, small and fairly uniform crystals. 13
