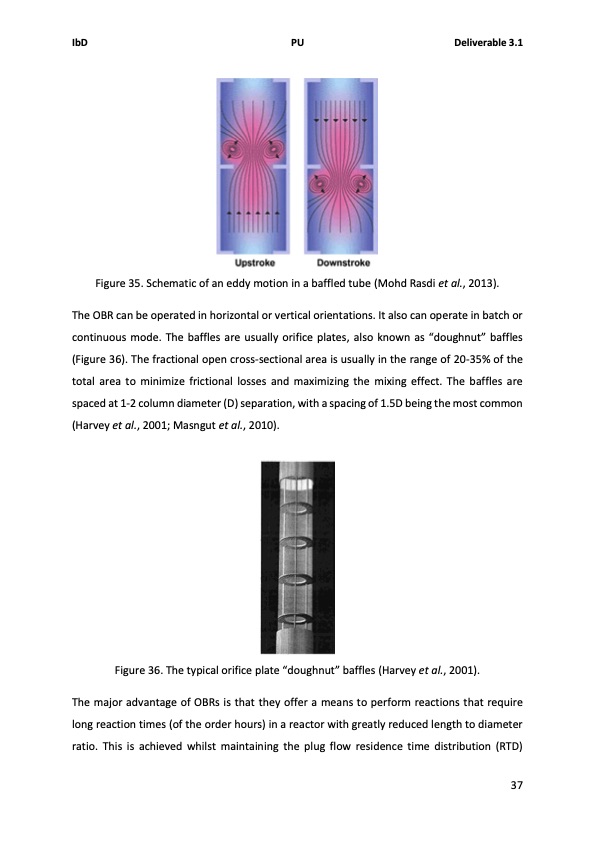

IbD PU Deliverable 3.1 Figure 35. Schematic of an eddy motion in a baffled tube (Mohd Rasdi et al., 2013). The OBR can be operated in horizontal or vertical orientations. It also can operate in batch or continuous mode. The baffles are usually orifice plates, also known as “doughnut” baffles (Figure 36). The fractional open cross-sectional area is usually in the range of 20-35% of the total area to minimize frictional losses and maximizing the mixing effect. The baffles are spaced at 1-2 column diameter (D) separation, with a spacing of 1.5D being the most common (Harvey et al., 2001; Masngut et al., 2010). Figure 36. The typical orifice plate “doughnut” baffles (Harvey et al., 2001). The major advantage of OBRs is that they offer a means to perform reactions that require long reaction times (of the order hours) in a reactor with greatly reduced length to diameter ratio. This is achieved whilst maintaining the plug flow residence time distribution (RTD) 37PDF Image | Solids handling for intensified process technology
