Text from PDF Page: 006

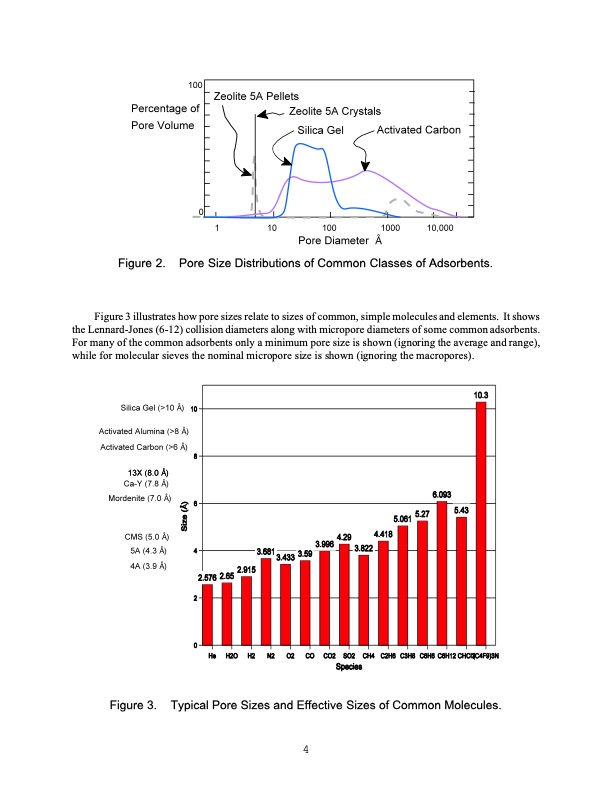

Figure 2. Pore Size Distributions of Common Classes of Adsorbents. Figure 3 illustrates how pore sizes relate to sizes of common, simple molecules and elements. It shows the Lennard-Jones (6-12) collision diameters along with micropore diameters of some common adsorbents. For many of the common adsorbents only a minimum pore size is shown (ignoring the average and range), while for molecular sieves the nominal micropore size is shown (ignoring the macropores). Figure 3. Typical Pore Sizes and Effective Sizes of Common Molecules. 4
