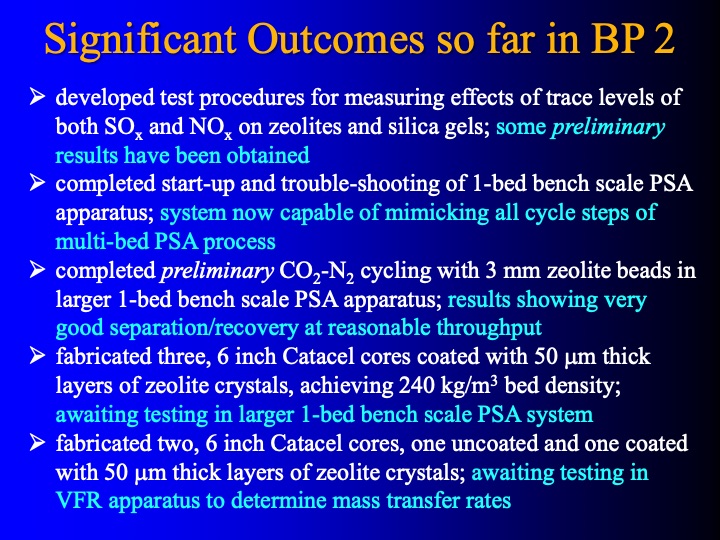

Significant developed test procedures for measuring effects of trace levels of both SOx and NOx on zeolites and silica gels; some preliminary results have been obtained completed start-up and trouble-shooting of 1-bed bench scale PSA apparatus; system now capable of mimicking all cycle steps of multi-bed PSA process completed preliminary CO2-N2 cycling with 3 mm zeolite beads in larger 1-bed bench scale PSA apparatus; results showing very good separation/recovery at reasonable throughput fabricated three, 6 inch Catacel cores coated with 50 μm thick layers of zeolite crystals, achieving 240 kg/m3 bed density; awaiting testing in larger 1-bed bench scale PSA system fabricated two, 6 inch Catacel cores, one uncoated and one coated with 50 μm thick layers of zeolite crystals; awaiting testing in VFR apparatus to determine mass transfer rates Outcomes so far in BP 2PDF Image | Development and Testing of PSA for CO
PDF Search Title:
Development and Testing of PSA for COOriginal File Name Searched:
J-Ritter-USCarolina-Rapid-PSA.pdfDIY PDF Search: Google It | Yahoo | Bing
