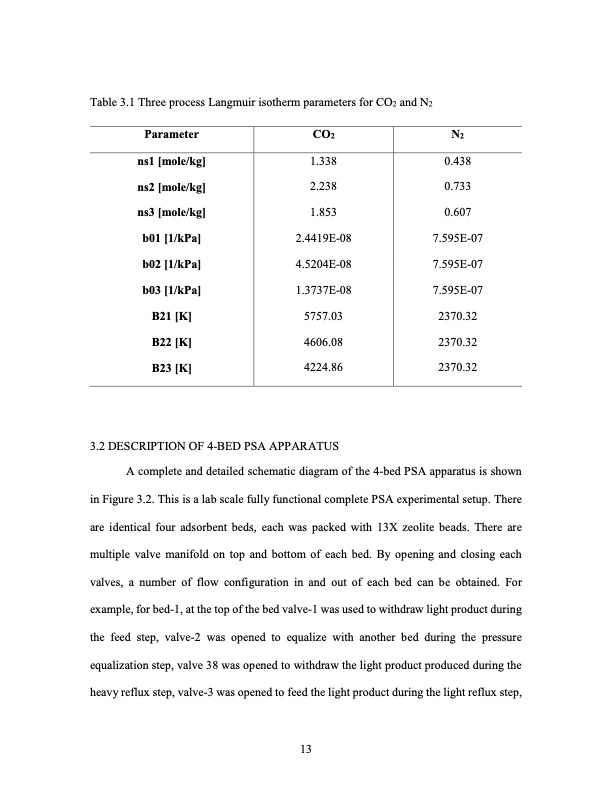

Table 3.1 Three process Langmuir isotherm parameters for CO2 and N2 Parameter ns1 [mole/kg] ns2 [mole/kg] ns3 [mole/kg] b01 [1/kPa] b02 [1/kPa] b03 [1/kPa] B21 [K] B22 [K] B23 [K] CO2 1.338 2.238 1.853 2.4419E-08 4.5204E-08 1.3737E-08 5757.03 4606.08 4224.86 N2 0.438 0.733 0.607 7.595E-07 7.595E-07 7.595E-07 2370.32 2370.32 2370.32 3.2 DESCRIPTION OF 4-BED PSA APPARATUS A complete and detailed schematic diagram of the 4-bed PSA apparatus is shown in Figure 3.2. This is a lab scale fully functional complete PSA experimental setup. There are identical four adsorbent beds, each was packed with 13X zeolite beads. There are multiple valve manifold on top and bottom of each bed. By opening and closing each valves, a number of flow configuration in and out of each bed can be obtained. For example, for bed-1, at the top of the bed valve-1 was used to withdraw light product during the feed step, valve-2 was opened to equalize with another bed during the pressure equalization step, valve 38 was opened to withdraw the light product produced during the heavy reflux step, valve-3 was opened to feed the light product during the light reflux step, 13PDF Image | Development of a Pressure Swing Adsorption (PSA) Cycle for CO2 Capture
