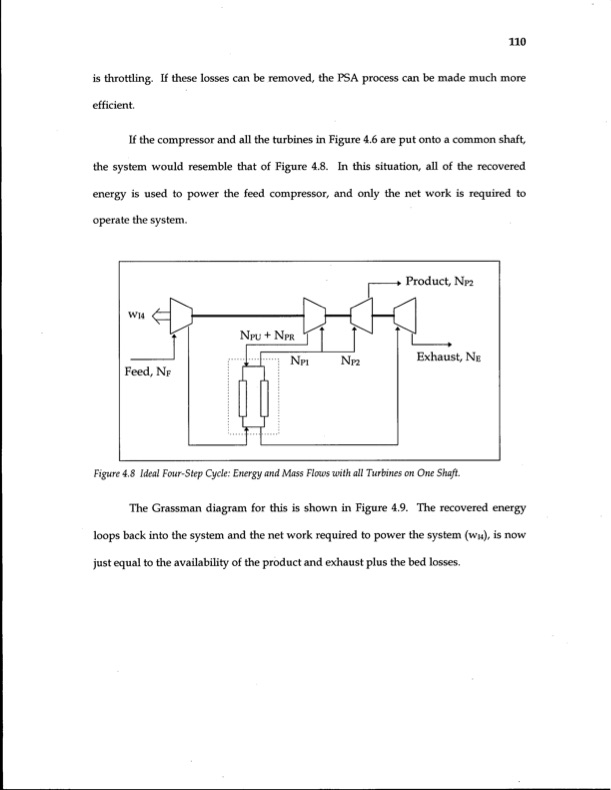

is tiirottlirig. If these losses can be removed, the PSA process can be made much more efficient. If the compressor and all the turbines in Figure 4.6 are put onto a common shaft, the system would resemble that of Figure 4.8. In this situation, all of the recovered energy is used to power the feed compressor, and only the net work is required to operate the system. WI4 Product, Np2 Exhaust, NE Feed, NF n t-j Npi Np2 Npu + N P R Figure4.8IdealFour-StepCycle:EnergyandMassFlowswithallTurbinesonOneShaft. The Grassman diagram for this is shown in Figure 4.9. The recovered energy loops back into the system and the net work required to power the system (WB), is now just equal to the availability of the product and exhaust plus the bed losses. 110PDF Image | Energy Efficiency of Gas Separation Pressure Swing Adsorption
