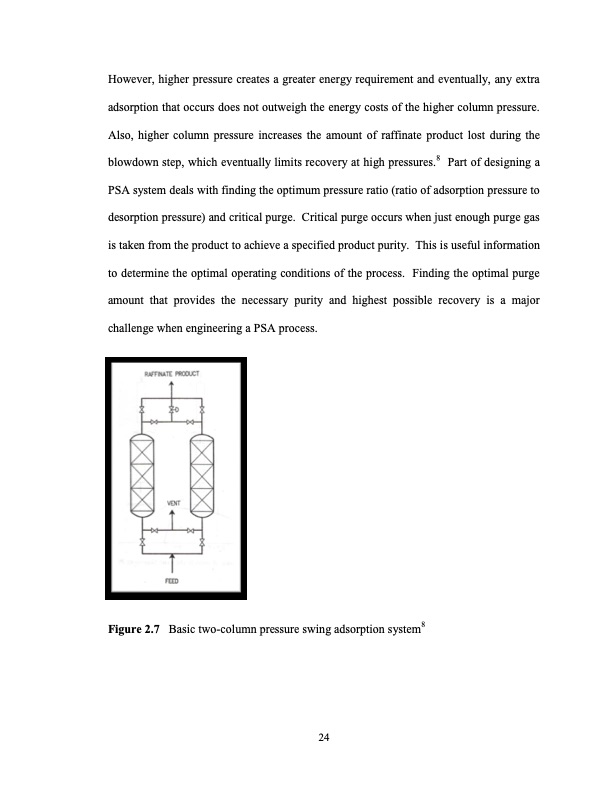

However, higher pressure creates a greater energy requirement and eventually, any extra adsorption that occurs does not outweigh the energy costs of the higher column pressure. Also, higher column pressure increases the amount of raffinate product lost during the blowdown step, which eventually limits recovery at high pressures.8 Part of designing a PSA system deals with finding the optimum pressure ratio (ratio of adsorption pressure to desorption pressure) and critical purge. Critical purge occurs when just enough purge gas is taken from the product to achieve a specified product purity. This is useful information to determine the optimal operating conditions of the process. Finding the optimal purge amount that provides the necessary purity and highest possible recovery is a major challenge when engineering a PSA process. Figure 2.7 Basic two-column pressure swing adsorption system8 24PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
