Text from PDF Page: 087

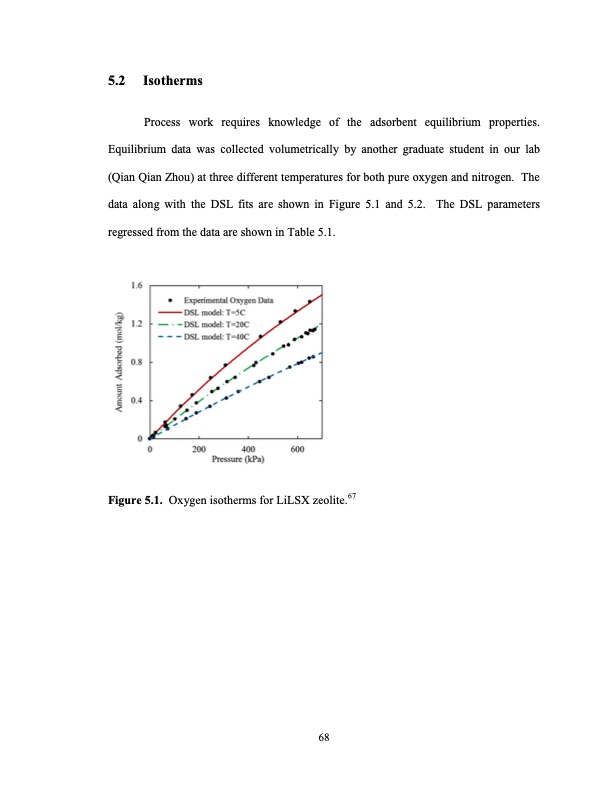

5.2 Isotherms Process work requires knowledge of the adsorbent equilibrium properties. Equilibrium data was collected volumetrically by another graduate student in our lab (Qian Qian Zhou) at three different temperatures for both pure oxygen and nitrogen. The data along with the DSL fits are shown in Figure 5.1 and 5.2. The DSL parameters regressed from the data are shown in Table 5.1. Figure 5.1. Oxygen isotherms for LiLSX zeolite.67 68
