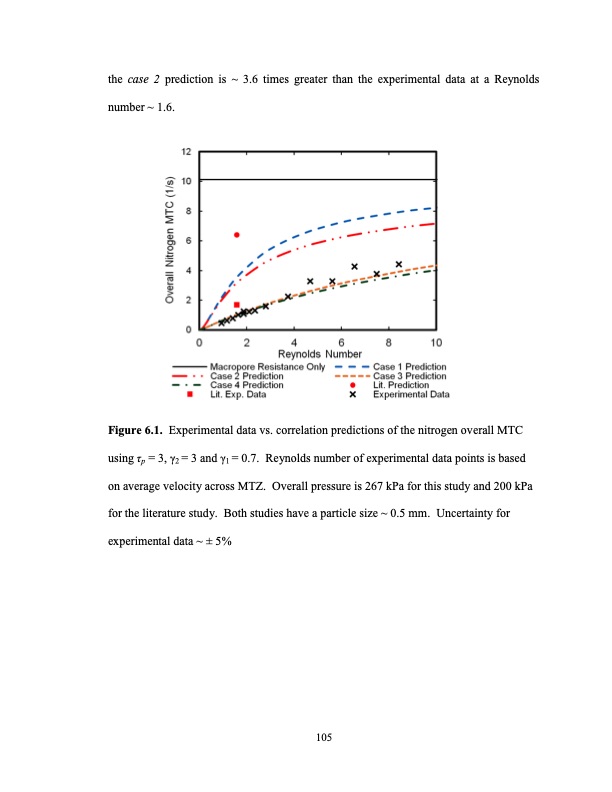

the case 2 prediction is ~ 3.6 times greater than the experimental data at a Reynolds number ~ 1.6. Figure 6.1. Experimental data vs. correlation predictions of the nitrogen overall MTC using τp = 3, γ2 = 3 and γ1 = 0.7. Reynolds number of experimental data points is based on average velocity across MTZ. Overall pressure is 267 kPa for this study and 200 kPa for the literature study. Both studies have a particle size ~ 0.5 mm. Uncertainty for experimental data ~ ± 5% 105PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
