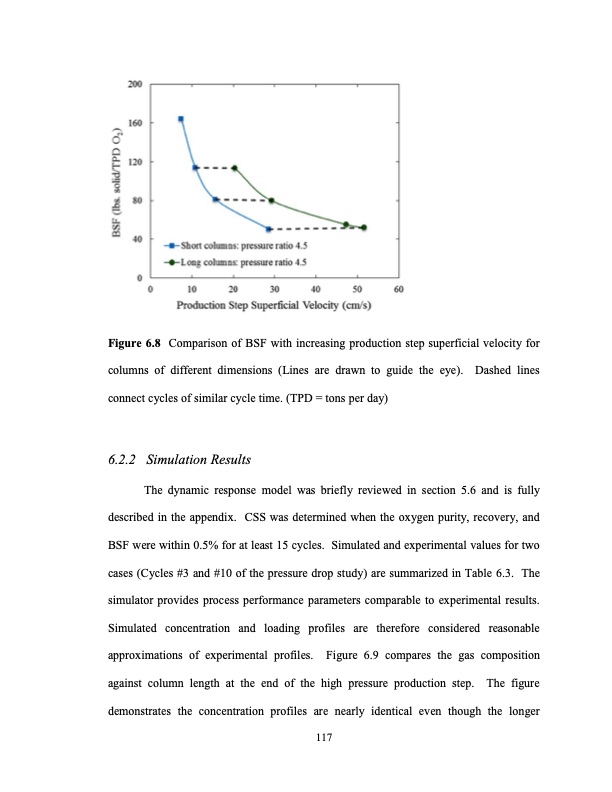

Figure 6.8 Comparison of BSF with increasing production step superficial velocity for columns of different dimensions (Lines are drawn to guide the eye). Dashed lines connect cycles of similar cycle time. (TPD = tons per day) 6.2.2 Simulation Results The dynamic response model was briefly reviewed in section 5.6 and is fully described in the appendix. CSS was determined when the oxygen purity, recovery, and BSF were within 0.5% for at least 15 cycles. Simulated and experimental values for two cases (Cycles #3 and #10 of the pressure drop study) are summarized in Table 6.3. The simulator provides process performance parameters comparable to experimental results. Simulated concentration and loading profiles are therefore considered reasonable approximations of experimental profiles. Figure 6.9 compares the gas composition against column length at the end of the high pressure production step. The figure demonstrates the concentration profiles are nearly identical even though the longer 117PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
