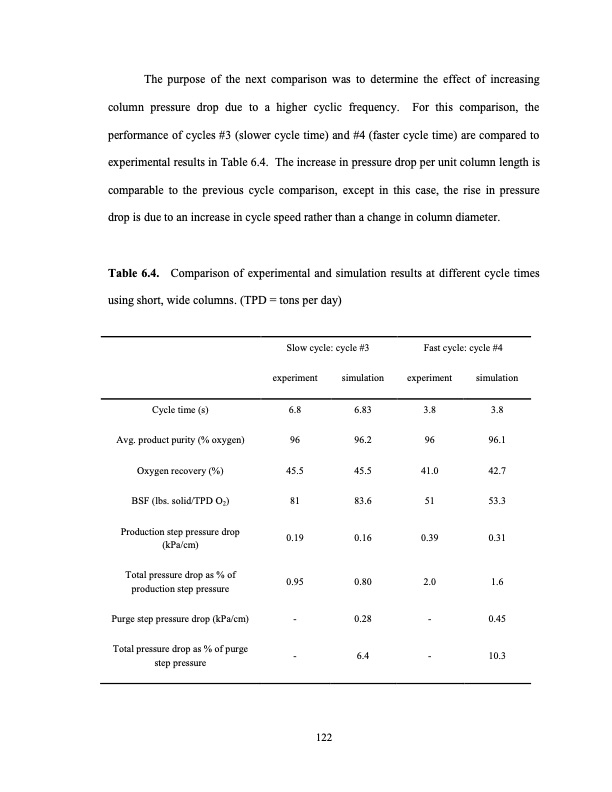

The purpose of the next comparison was to determine the effect of increasing column pressure drop due to a higher cyclic frequency. For this comparison, the performance of cycles #3 (slower cycle time) and #4 (faster cycle time) are compared to experimental results in Table 6.4. The increase in pressure drop per unit column length is comparable to the previous cycle comparison, except in this case, the rise in pressure drop is due to an increase in cycle speed rather than a change in column diameter. Table 6.4. Comparison of experimental and simulation results at different cycle times using short, wide columns. (TPD = tons per day) Slow cycle: cycle #3 experiment simulation 6.8 6.83 96 96.2 45.5 45.5 81 83.6 0.19 0.16 0.95 0.80 - 0.28 - 6.4 - 10.3 Fast cycle: cycle #4 experiment 3.8 3.8 96 96.1 41.0 42.7 51 53.3 0.39 0.31 simulation Cycle time (s) Avg. product purity (% oxygen) Oxygen recovery (%) BSF (lbs. solid/TPD O2) Production step pressure drop (kPa/cm) Total pressure drop as % of production step pressure Purge step pressure drop (kPa/cm) Total pressure drop as % of purge step pressure 2.0 1.6 - 0.45 122PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
