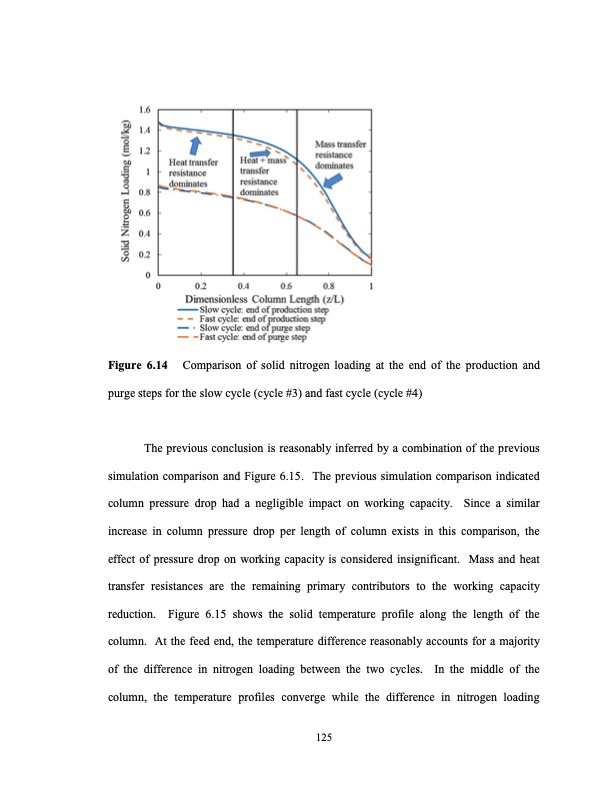

Figure 6.14 Comparison of solid nitrogen loading at the end of the production and purge steps for the slow cycle (cycle #3) and fast cycle (cycle #4) The previous conclusion is reasonably inferred by a combination of the previous simulation comparison and Figure 6.15. The previous simulation comparison indicated column pressure drop had a negligible impact on working capacity. Since a similar increase in column pressure drop per length of column exists in this comparison, the effect of pressure drop on working capacity is considered insignificant. Mass and heat transfer resistances are the remaining primary contributors to the working capacity reduction. Figure 6.15 shows the solid temperature profile along the length of the column. At the feed end, the temperature difference reasonably accounts for a majority of the difference in nitrogen loading between the two cycles. In the middle of the column, the temperature profiles converge while the difference in nitrogen loading 125PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
