PDF Publication Title:
Text from PDF Page: 176

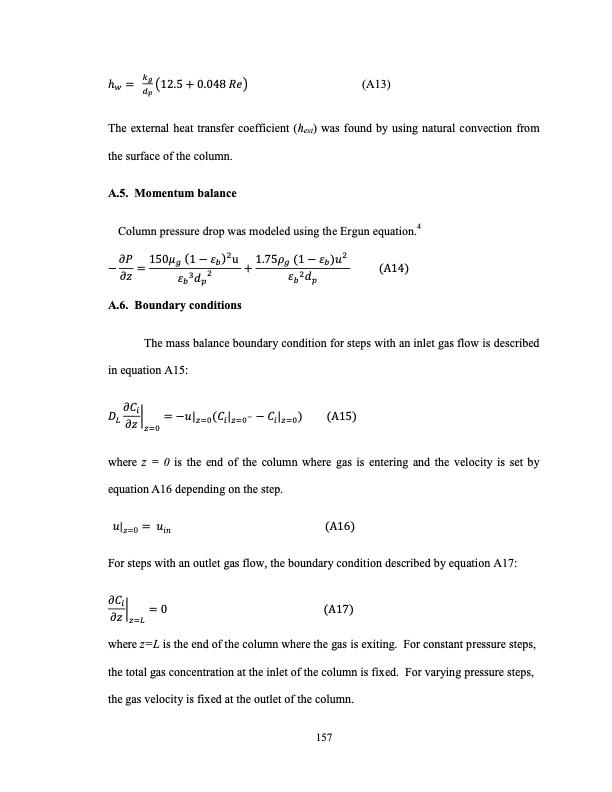

(A13) The external heat transfer coefficient (hext) was found by using natural convection from the surface of the column. A.5. Momentum balance Column pressure drop was modeled using the Ergun equation.4 A.6. Boundary conditions The mass balance boundary condition for steps with an inlet gas flow is described in equation A15: where z = 0 is the end of the column where gas is entering and the velocity is set by equation A16 depending on the step. For steps with an outlet gas flow, the boundary condition described by equation A17: where z=L is the end of the column where the gas is exiting. For constant pressure steps, the total gas concentration at the inlet of the column is fixed. For varying pressure steps, the gas velocity is fixed at the outlet of the column. 157PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
PDF Search Title:
LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTIONOriginal File Name Searched:
Limits of Small Scale PSA_Aaron Moran.pdfDIY PDF Search: Google It | Yahoo | Bing
