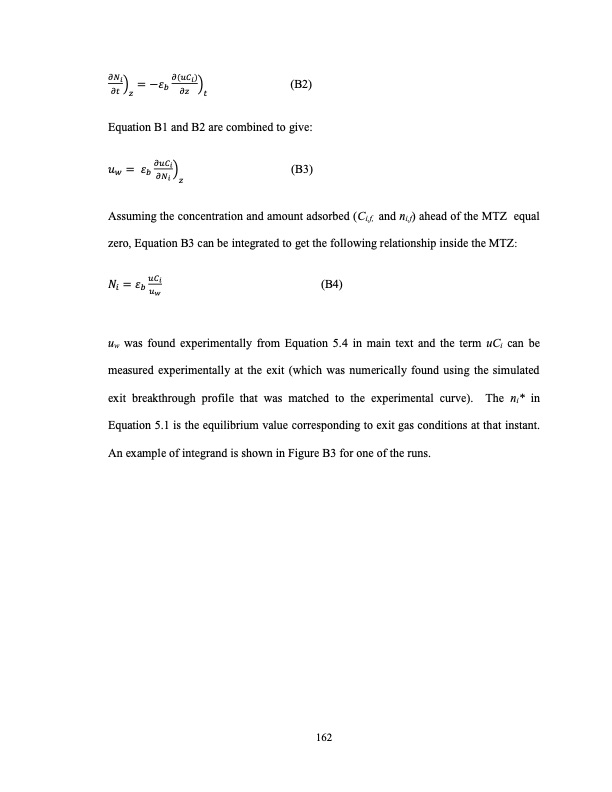

(B2) Equation B1 and B2 are combined to give: (B3) Assuming the concentration and amount adsorbed (Ci,f, and ni,f) ahead of the MTZ equal zero, Equation B3 can be integrated to get the following relationship inside the MTZ: (B4) uw was found experimentally from Equation 5.4 in main text and the term uCi can be measured experimentally at the exit (which was numerically found using the simulated exit breakthrough profile that was matched to the experimental curve). The ni* in Equation 5.1 is the equilibrium value corresponding to exit gas conditions at that instant. An example of integrand is shown in Figure B3 for one of the runs. 162PDF Image | LIMITS OF SMALL SCALE PRESSURE SWING ADSORPTION
