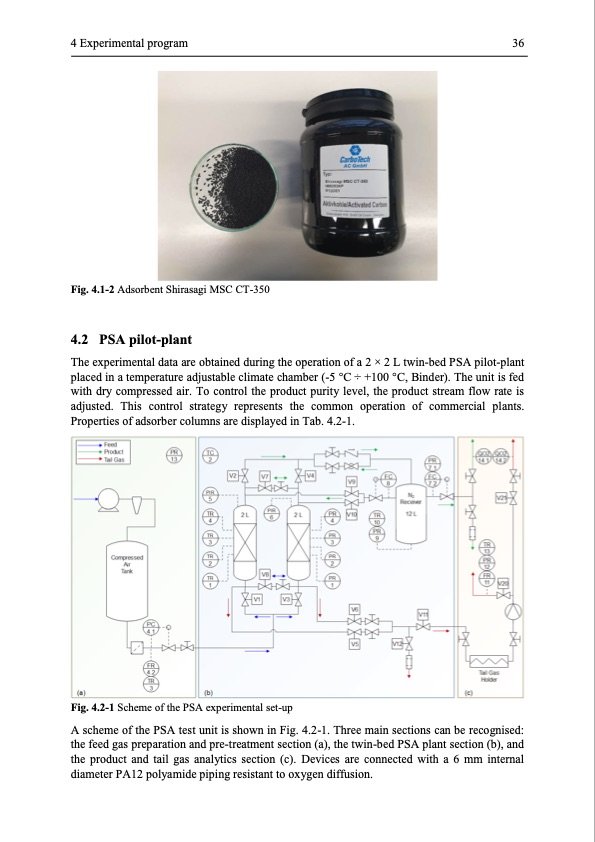

4 Experimental program 36 Fig. 4.1-2 Adsorbent Shirasagi MSC CT-350 4.2 PSA pilot-plant The experimental data are obtained during the operation of a 2 × 2 L twin-bed PSA pilot-plant placed in a temperature adjustable climate chamber (-5 °C ÷ +100 °C, Binder). The unit is fed with dry compressed air. To control the product purity level, the product stream flow rate is adjusted. This control strategy represents the common operation of commercial plants. Properties of adsorber columns are displayed in Tab. 4.2-1. Fig. 4.2-1 Scheme of the PSA experimental set-up A scheme of the PSA test unit is shown in Fig. 4.2-1. Three main sections can be recognised: the feed gas preparation and pre-treatment section (a), the twin-bed PSA plant section (b), and the product and tail gas analytics section (c). Devices are connected with a 6 mm internal diameter PA12 polyamide piping resistant to oxygen diffusion.PDF Image | Modelling and Simulation of Twin-Bed Pressure Swing Adsorption Plants
