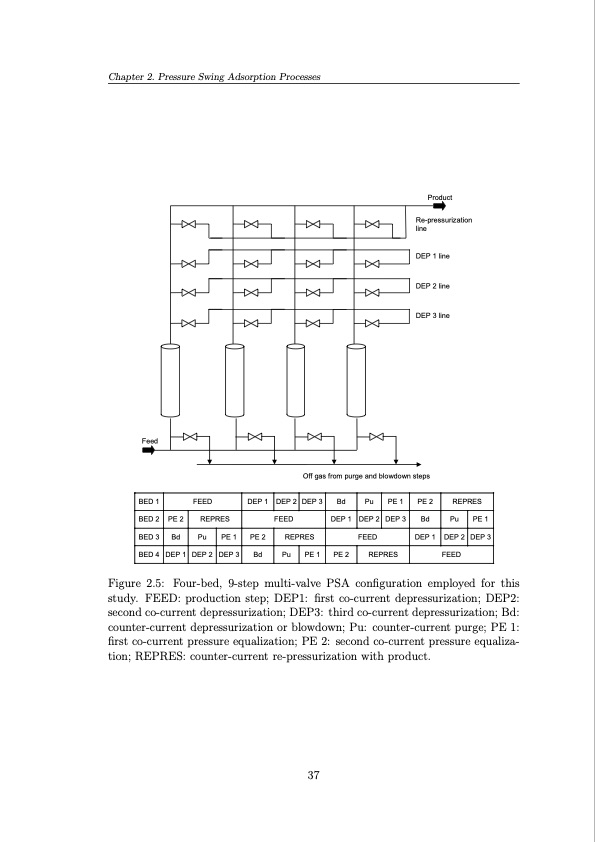

Chapter 2. Pressure Swing Adsorption Processes Product Re-pressurization line DEP 1 line DEP 2 line DEP 3 line Feed BED 1 BED 2 BED 3 BED4 FEED REPRES Pu PE 1 DEP 1 PE 2 Bd DEP 2 FEED DEP 3 Bd DEP 1 PE2 Pu DEP 2 FEED PE 1 DEP 3 PE 2 Bd DEP 1 REPRES Pu PE 1 DEP 2 DEP 3 FEED Off gas from purge and blowdown steps PE 2 Bd REPRES Pu PE1 DEP1 DEP2 DEP3 REPRES Figure 2.5: Four-bed, 9-step multi-valve PSA configuration employed for this study. FEED: production step; DEP1: first co-current depressurization; DEP2: second co-current depressurization; DEP3: third co-current depressurization; Bd: counter-current depressurization or blowdown; Pu: counter-current purge; PE 1: first co-current pressure equalization; PE 2: second co-current pressure equaliza- tion; REPRES: counter-current re-pressurization with product. 37PDF Image | Operation and Control of Pressure Swing Adsorption Systems
