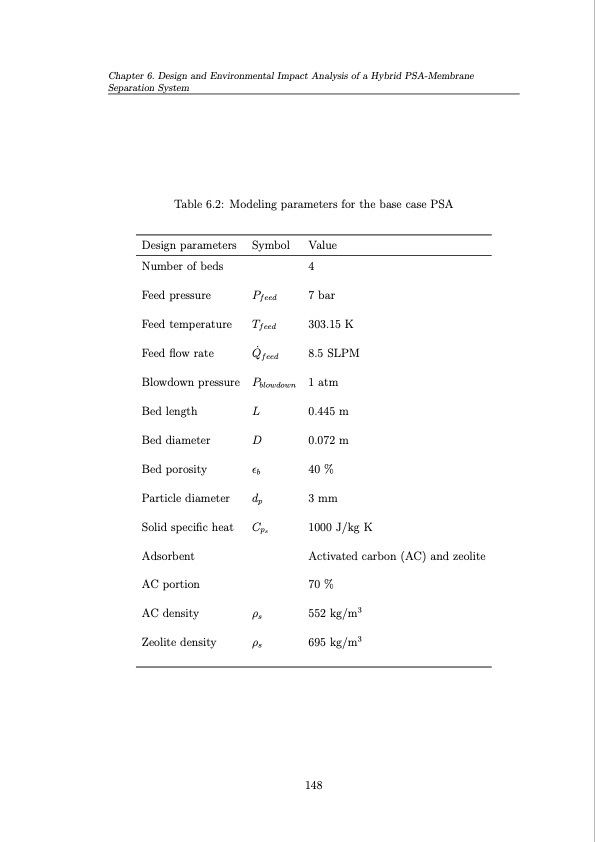

Chapter 6. Design and Environmental Impact Analysis of a Hybrid PSA-Membrane Separation System Table 6.2: Modeling parameters for the base case PSA Design parameters Number of beds Feed pressure Feed temperature Feed flow rate Blowdown pressure Bed length Bed diameter Bed porosity Particle diameter Solid specific heat Adsorbent AC portion AC density Zeolite density Symbol Pf eed Tf eed Q ̇ f eed Pblowdown L D εb dp Cps ρs ρs Value 4 7 bar 303.15 K 8.5 SLPM 1 atm 0.445 m 0.072 m 40% 3mm 1000 J/kg K Activated carbon (AC) and zeolite 70% 552 kg/m3 695 kg/m3 148PDF Image | Operation and Control of Pressure Swing Adsorption Systems
