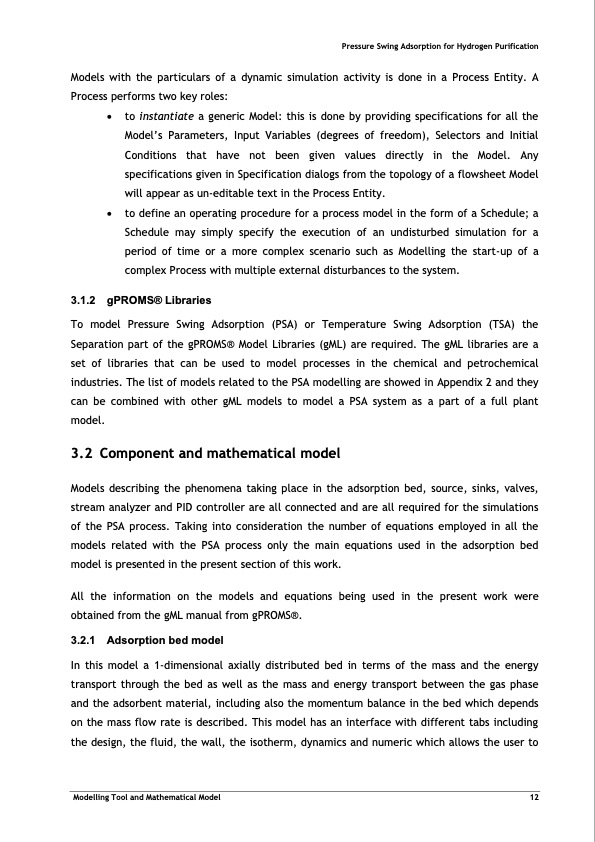

Models with the particulars of a dynamic simulation activity is done in a Process Entity. A Process performs two key roles: to instantiate a generic Model: this is done by providing specifications for all the Model’s Parameters, Input Variables (degrees of freedom), Selectors and Initial Conditions that have not been given values directly in the Model. Any specifications given in Specification dialogs from the topology of a flowsheet Model will appear as un-editable text in the Process Entity. to define an operating procedure for a process model in the form of a Schedule; a Schedule may simply specify the execution of an undisturbed simulation for a period of time or a more complex scenario such as Modelling the start-up of a complex Process with multiple external disturbances to the system. 3.1.2 gPROMS® Libraries To model Pressure Swing Adsorption (PSA) or Temperature Swing Adsorption (TSA) the Separation part of the gPROMS® Model Libraries (gML) are required. The gML libraries are a set of libraries that can be used to model processes in the chemical and petrochemical industries. The list of models related to the PSA modelling are showed in Appendix 2 and they can be combined with other gML models to model a PSA system as a part of a full plant model. 3.2 Component and mathematical model Models describing the phenomena taking place in the adsorption bed, source, sinks, valves, stream analyzer and PID controller are all connected and are all required for the simulations of the PSA process. Taking into consideration the number of equations employed in all the models related with the PSA process only the main equations used in the adsorption bed model is presented in the present section of this work. All the information on the models and equations being used in the present work were obtained from the gML manual from gPROMS®. 3.2.1 Adsorption bed model In this model a 1-dimensional axially distributed bed in terms of the mass and the energy transport through the bed as well as the mass and energy transport between the gas phase and the adsorbent material, including also the momentum balance in the bed which depends on the mass flow rate is described. This model has an interface with different tabs including the design, the fluid, the wall, the isotherm, dynamics and numeric which allows the user to Pressure Swing Adsorption for Hydrogen Purification Modelling Tool and Mathematical Model 12PDF Image | PRESSURE SWING ADSORPTION FOR THE PURIFICATION OF HYDROGEN
