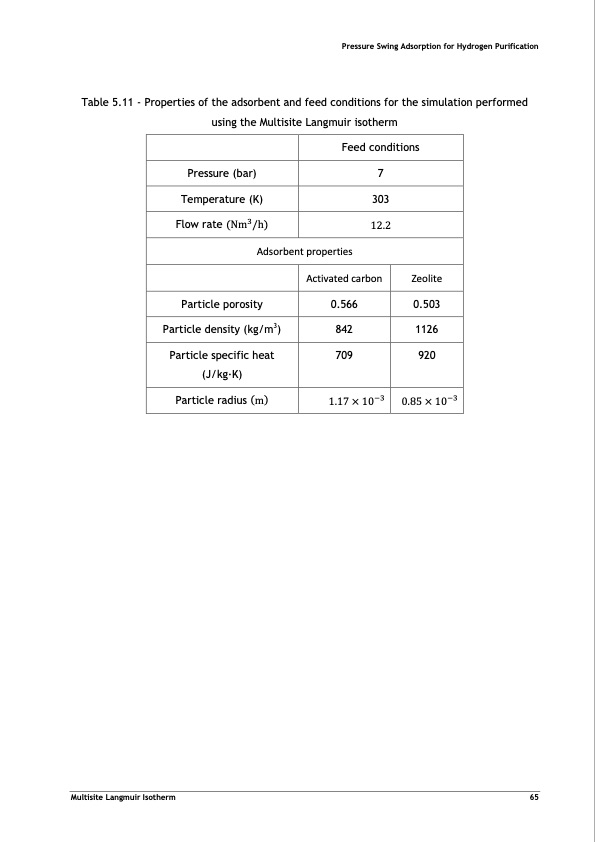

Table 5.11 - Properties of the adsorbent and feed conditions for the simulation performed using the Multisite Langmuir isotherm Feed conditions Pressure (bar) 7 Pressure Swing Adsorption for Hydrogen Purification Temperature (K) 303 Flow rate (Nm3/h) 12.2 Adsorbent properties Activated carbon Zeolite 0.503 1126 0.85 × 10−3 Particle porosity Particle density (kg/m3) Particle radius (m) 0.566 842 1.17 × 10−3 Particle specific heat (J/kg·K) 709 920 Multisite Langmuir Isotherm 65PDF Image | PRESSURE SWING ADSORPTION FOR THE PURIFICATION OF HYDROGEN
