PDF Publication Title:
Text from PDF Page: 008

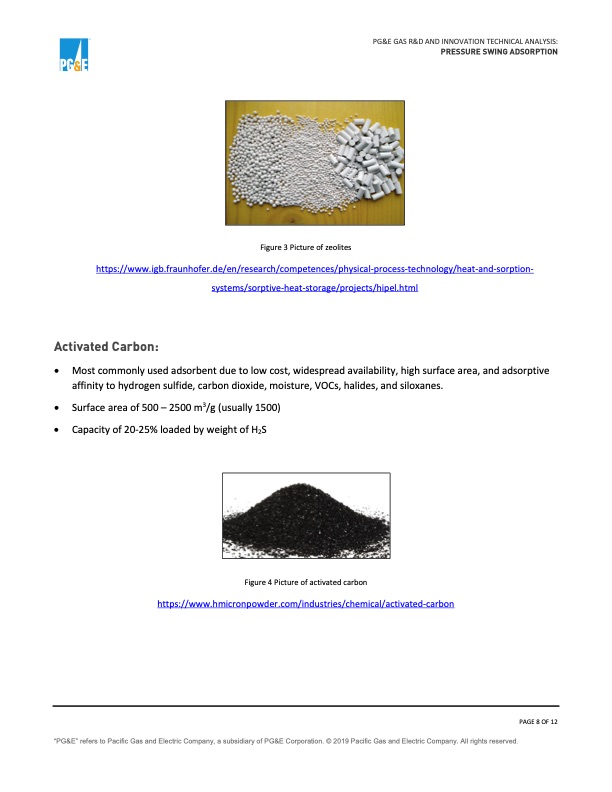

Figure 3 Picture of zeolites https://www.igb.fraunhofer.de/en/research/competences/physical-process-technology/heat-and-sorption- systems/sorptive-heat-storage/projects/hipel.html Activated Carbon: • Most commonly used adsorbent due to low cost, widespread availability, high surface area, and adsorptive affinity to hydrogen sulfide, carbon dioxide, moisture, VOCs, halides, and siloxanes. • Surface area of 500 – 2500 m3/g (usually 1500) • Capacity of 20-25% loaded by weight of H2S Figure 4 Picture of activated carbon https://www.hmicronpowder.com/industries/chemical/activated-carbon PG&E GAS R&D AND INNOVATION TECHNICAL ANALYSIS: PRESSURE SWING ADSORPTION “PG&E” refers to Pacific Gas and Electric Company, a subsidiary of PG&E Corporation. © 2019 Pacific Gas and Electric Company. All rights reserved. PAGE 8 OF 12PDF Image | Pressure Swing Adsorption Technical Analysis
