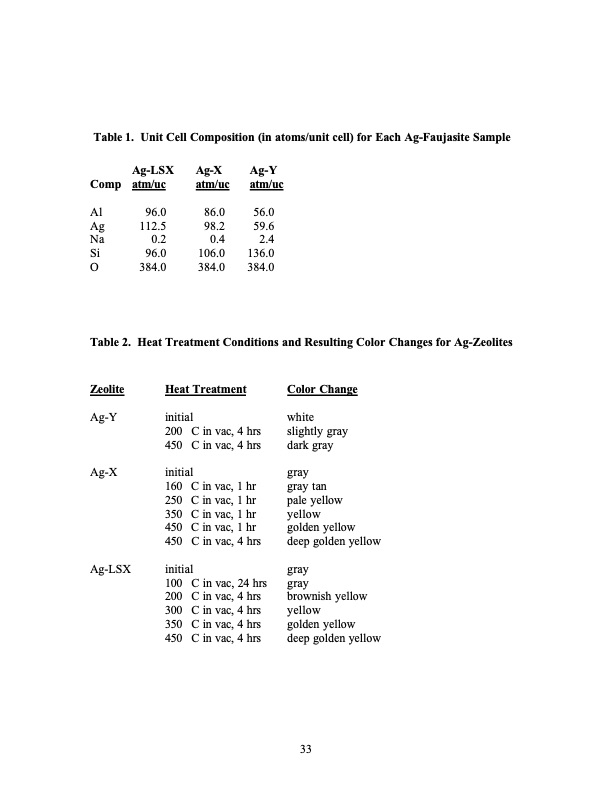

Table 1. Unit Cell Composition (in atoms/unit cell) for Each Ag-Faujasite Sample Ag-LSX Comp atm/uc Al 96.0 Ag 112.5 Na 0.2 Si 96.0 O 384.0 Ag-X Ag-Y atm/uc atm/uc 86.0 56.0 98.2 59.6 0.4 2.4 106.0 136.0 384.0 384.0 Table 2. Heat Treatment Conditions and Resulting Color Changes for Ag-Zeolites Zeolite Heat Treatment Ag-Y initial 200 C in vac, 4 hrs 450 C in vac, 4 hrs Ag-X initial 160 C in vac, 1 hr 250 Cinvac,1hr 350 Cinvac,1hr 450 Cinvac,1hr 450 Cinvac,4hrs Ag-LSX initial 100 C in vac, 24 hrs 200 Cinvac,4hrs 300 Cinvac,4hrs 350 Cinvac,4hrs 450 Cinvac,4hrs Color Change white slightly gray dark gray gray gray tan pale yellow yellow golden yellow deep golden yellow gray gray brownish yellow yellow golden yellow deep golden yellow 33PDF Image | PSA USING SUPERIOR ADSORBENTS
