Text from PDF Page: 074

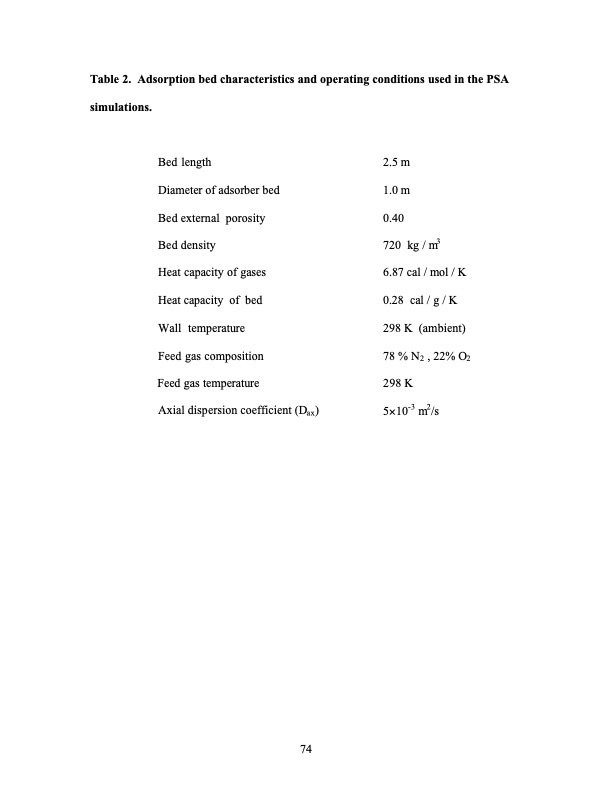

Table 2. Adsorption bed characteristics and operating conditions used in the PSA simulations. Bed length Diameter of adsorber bed Bed external porosity Bed density Heat capacity of gases Heat capacity of bed Wall temperature Feed gas composition Feed gas temperature Axial dispersion coefficient (Dax) 2.5 m 1.0 m 0.40 720 kg / m3 6.87 cal / mol / K 0.28 cal / g / K 298 K (ambient) 78 % N2 , 22% O2 298 K 5×10-3 m2/s 74PDF Image | PSA USING SUPERIOR ADSORBENTS
