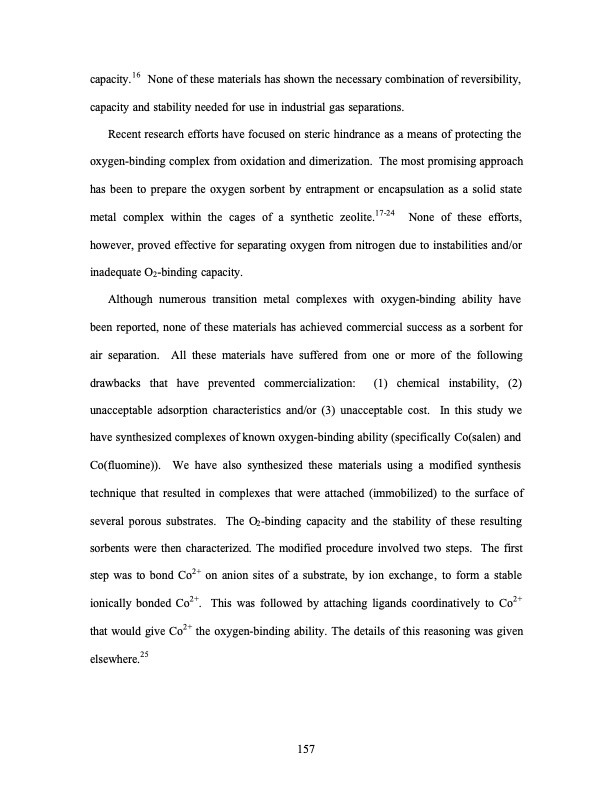

Text from PDF Page: 157
capacity.16 None of these materials has shown the necessary combination of reversibility, capacity and stability needed for use in industrial gas separations. Recent research efforts have focused on steric hindrance as a means of protecting the oxygen-binding complex from oxidation and dimerization. The most promising approach has been to prepare the oxygen sorbent by entrapment or encapsulation as a solid state metal complex within the cages of a synthetic zeolite.17-24 None of these efforts, however, proved effective for separating oxygen from nitrogen due to instabilities and/or inadequate O2-binding capacity. Although numerous transition metal complexes with oxygen-binding ability have been reported, none of these materials has achieved commercial success as a sorbent for air separation. All these materials have suffered from one or more of the following drawbacks that have prevented commercialization: (1) chemical instability, (2) unacceptable adsorption characteristics and/or (3) unacceptable cost. In this study we have synthesized complexes of known oxygen-binding ability (specifically Co(salen) and Co(fluomine)). We have also synthesized these materials using a modified synthesis technique that resulted in complexes that were attached (immobilized) to the surface of several porous substrates. The O2-binding capacity and the stability of these resulting sorbents were then characterized. The modified procedure involved two steps. The first step was to bond Co2+ on anion sites of a substrate, by ion exchange, to form a stable ionically bonded Co2+. This was followed by attaching ligands coordinatively to Co2+ that would give Co2+ the oxygen-binding ability. The details of this reasoning was given elsewhere.25 157PDF Image | PSA USING SUPERIOR ADSORBENTS
