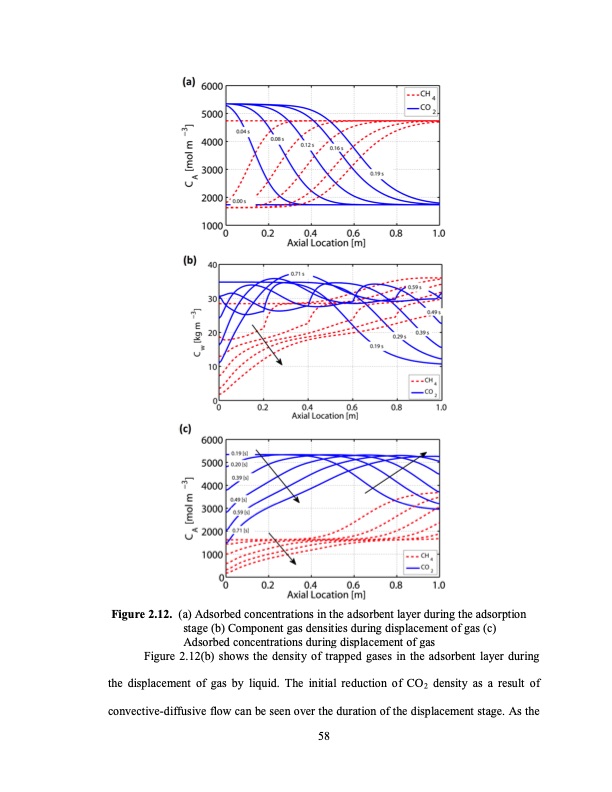

Figure 2.12. (a) Adsorbed concentrations in the adsorbent layer during the adsorption stage (b) Component gas densities during displacement of gas (c) Adsorbed concentrations during displacement of gas Figure 2.12(b) shows the density of trapped gases in the adsorbent layer during the displacement of gas by liquid. The initial reduction of CO2 density as a result of convective-diffusive flow can be seen over the duration of the displacement stage. As the 58PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
