PDF Publication Title:
Text from PDF Page: 147

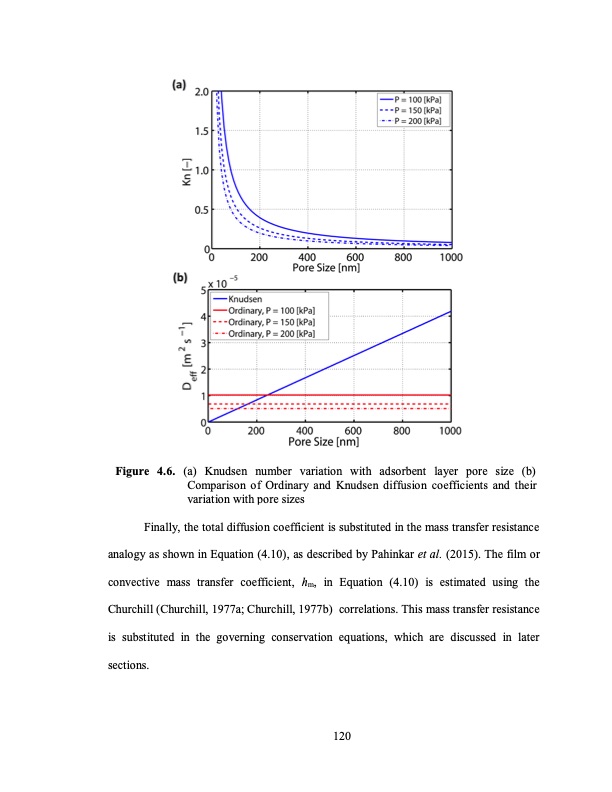

Figure 4.6. (a) Knudsen number variation with adsorbent layer pore size (b) Comparison of Ordinary and Knudsen diffusion coefficients and their variation with pore sizes Finally, the total diffusion coefficient is substituted in the mass transfer resistance analogy as shown in Equation (4.10), as described by Pahinkar et al. (2015). The film or convective mass transfer coefficient, hm, in Equation (4.10) is estimated using the Churchill (Churchill, 1977a; Churchill, 1977b) correlations. This mass transfer resistance is substituted in the governing conservation equations, which are discussed in later sections. 120PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
PDF Search Title:
TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATIONOriginal File Name Searched:
PAHINKAR-DISSERTATION-2016.pdfDIY PDF Search: Google It | Yahoo | Bing
