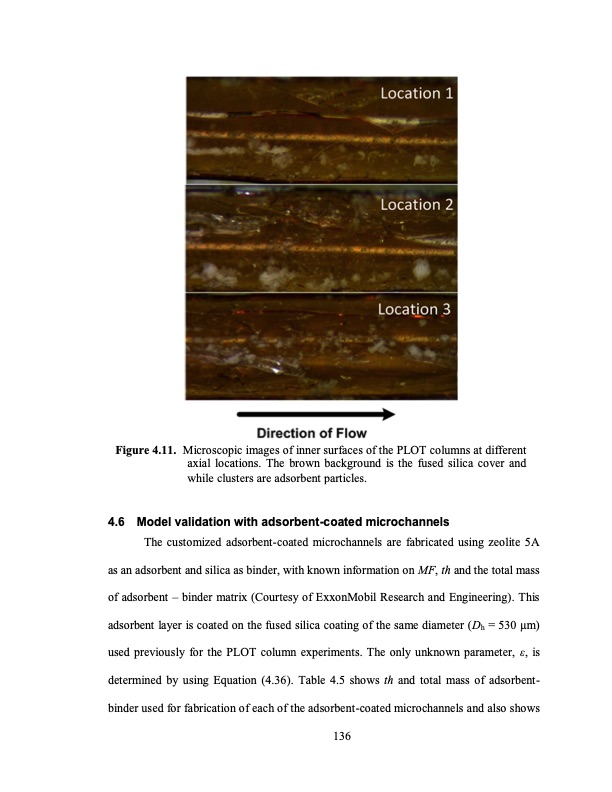

Figure 4.11. Microscopic images of inner surfaces of the PLOT columns at different axial locations. The brown background is the fused silica cover and while clusters are adsorbent particles. 4.6 Model validation with adsorbent-coated microchannels The customized adsorbent-coated microchannels are fabricated using zeolite 5A as an adsorbent and silica as binder, with known information on MF, th and the total mass of adsorbent – binder matrix (Courtesy of ExxonMobil Research and Engineering). This adsorbent layer is coated on the fused silica coating of the same diameter (Dh = 530 μm) used previously for the PLOT column experiments. The only unknown parameter, ε, is determined by using Equation (4.36). Table 4.5 shows th and total mass of adsorbent- binder used for fabrication of each of the adsorbent-coated microchannels and also shows 136PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
