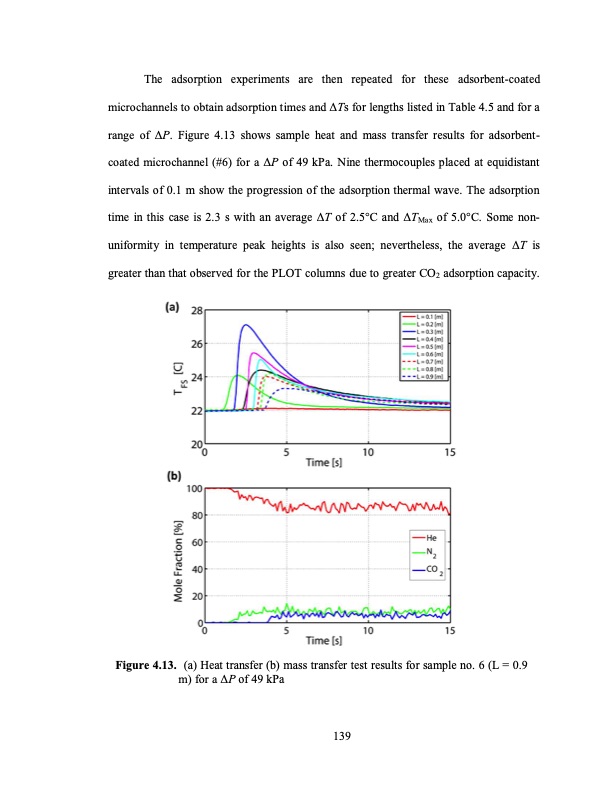

The adsorption experiments are then repeated for these adsorbent-coated microchannels to obtain adsorption times and ΔTs for lengths listed in Table 4.5 and for a range of ΔP. Figure 4.13 shows sample heat and mass transfer results for adsorbent- coated microchannel (#6) for a ΔP of 49 kPa. Nine thermocouples placed at equidistant intervals of 0.1 m show the progression of the adsorption thermal wave. The adsorption time in this case is 2.3 s with an average ΔT of 2.5°C and ΔTMax of 5.0°C. Some non- uniformity in temperature peak heights is also seen; nevertheless, the average ΔT is greater than that observed for the PLOT columns due to greater CO2 adsorption capacity. Figure 4.13. (a) Heat transfer (b) mass transfer test results for sample no. 6 (L = 0.9 m) for a ΔP of 49 kPa 139PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
