PDF Publication Title:
Text from PDF Page: 178

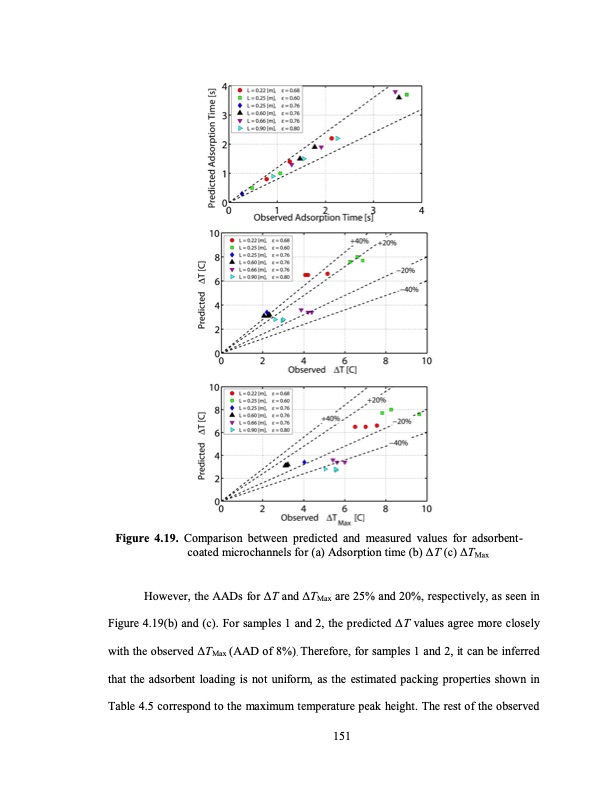

Figure 4.19. Comparison between predicted and measured values for adsorbent- coated microchannels for (a) Adsorption time (b) ΔT (c) ΔTMax However, the AADs for ΔT and ΔTMax are 25% and 20%, respectively, as seen in Figure 4.19(b) and (c). For samples 1 and 2, the predicted ΔT values agree more closely with the observed ΔTMax (AAD of 8%). Therefore, for samples 1 and 2, it can be inferred that the adsorbent loading is not uniform, as the estimated packing properties shown in Table 4.5 correspond to the maximum temperature peak height. The rest of the observed 151PDF Image | TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATION
PDF Search Title:
TEMPERATURE SWING ADSORPTION PROCESSES FOR GAS SEPARATIONOriginal File Name Searched:
PAHINKAR-DISSERTATION-2016.pdfDIY PDF Search: Google It | Yahoo | Bing
