PDF Publication Title:
Text from PDF Page: 006

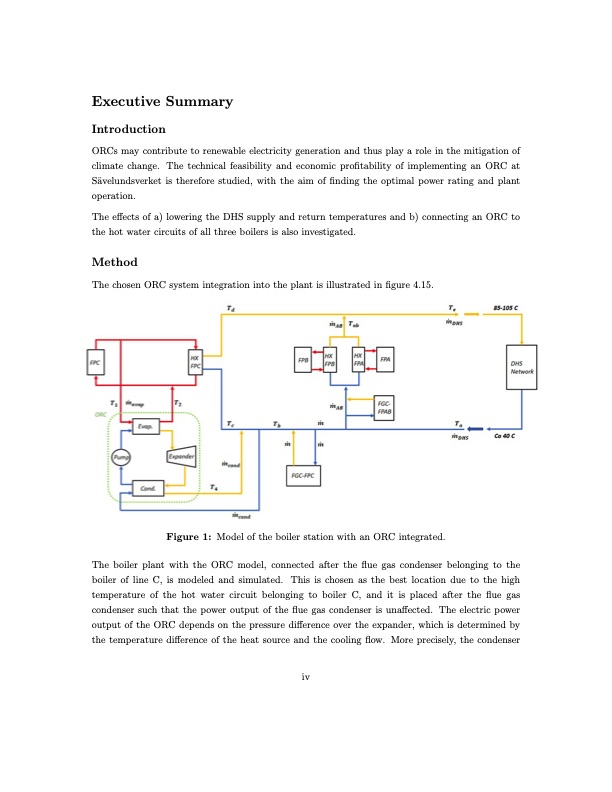

Executive Summary Introduction ORCs may contribute to renewable electricity generation and thus play a role in the mitigation of climate change. The technical feasibility and economic profitability of implementing an ORC at S ̈avelundsverket is therefore studied, with the aim of finding the optimal power rating and plant operation. The effects of a) lowering the DHS supply and return temperatures and b) connecting an ORC to the hot water circuits of all three boilers is also investigated. Method The chosen ORC system integration into the plant is illustrated in figure 4.15. Figure 1: Model of the boiler station with an ORC integrated. The boiler plant with the ORC model, connected after the flue gas condenser belonging to the boiler of line C, is modeled and simulated. This is chosen as the best location due to the high temperature of the hot water circuit belonging to boiler C, and it is placed after the flue gas condenser such that the power output of the flue gas condenser is unaffected. The electric power output of the ORC depends on the pressure difference over the expander, which is determined by the temperature difference of the heat source and the cooling flow. More precisely, the condenser ivPDF Image | Analysis of Organic Rankine Cycles for a Boiler Station
PDF Search Title:
Analysis of Organic Rankine Cycles for a Boiler StationOriginal File Name Searched:
economic-analysis-orc-boiler.pdfDIY PDF Search: Google It | Yahoo | Bing
