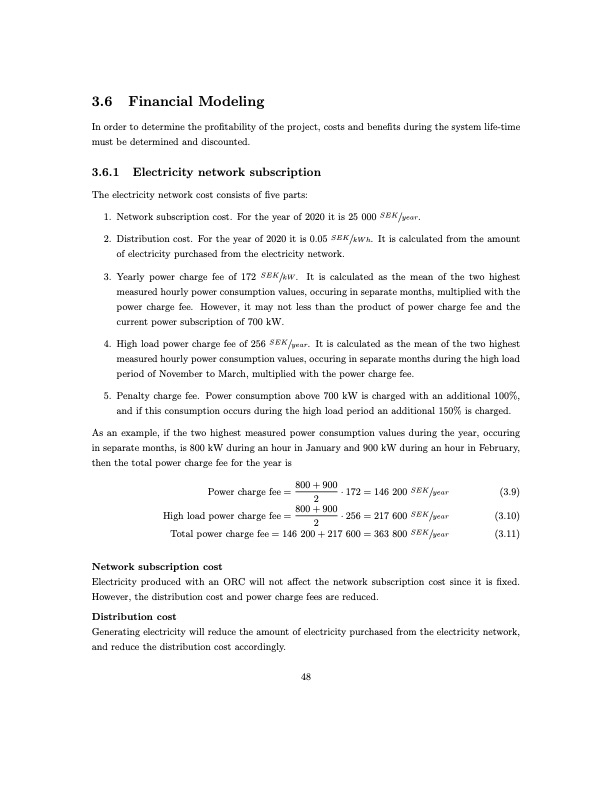

3.6 Financial Modeling In order to determine the profitability of the project, costs and benefits during the system life-time must be determined and discounted. 3.6.1 Electricity network subscription The electricity network cost consists of five parts: 1. Network subscription cost. For the year of 2020 it is 25 000 SEK/year. 2. Distribution cost. For the year of 2020 it is 0.05 SEK/kWh. It is calculated from the amount of electricity purchased from the electricity network. 3. Yearly power charge fee of 172 SEK/kW. It is calculated as the mean of the two highest measured hourly power consumption values, occuring in separate months, multiplied with the power charge fee. However, it may not less than the product of power charge fee and the current power subscription of 700 kW. 4. High load power charge fee of 256 SEK/year. It is calculated as the mean of the two highest measured hourly power consumption values, occuring in separate months during the high load period of November to March, multiplied with the power charge fee. 5. Penalty charge fee. Power consumption above 700 kW is charged with an additional 100%, and if this consumption occurs during the high load period an additional 150% is charged. As an example, if the two highest measured power consumption values during the year, occuring in separate months, is 800 kW during an hour in January and 900 kW during an hour in February, then the total power charge fee for the year is Power charge fee = 800 + 900 · 172 = 146 200 SEK/year 2 High load power charge fee = 800 + 900 · 256 = 217 600 SEK/year 2 Total power charge fee = 146 200 + 217 600 = 363 800 SEK/year Network subscription cost (3.9) (3.10) (3.11) Electricity produced with an ORC will not affect the network subscription cost since it is fixed. However, the distribution cost and power charge fees are reduced. Distribution cost Generating electricity will reduce the amount of electricity purchased from the electricity network, and reduce the distribution cost accordingly. 48PDF Image | Analysis of Organic Rankine Cycles for a Boiler Station
