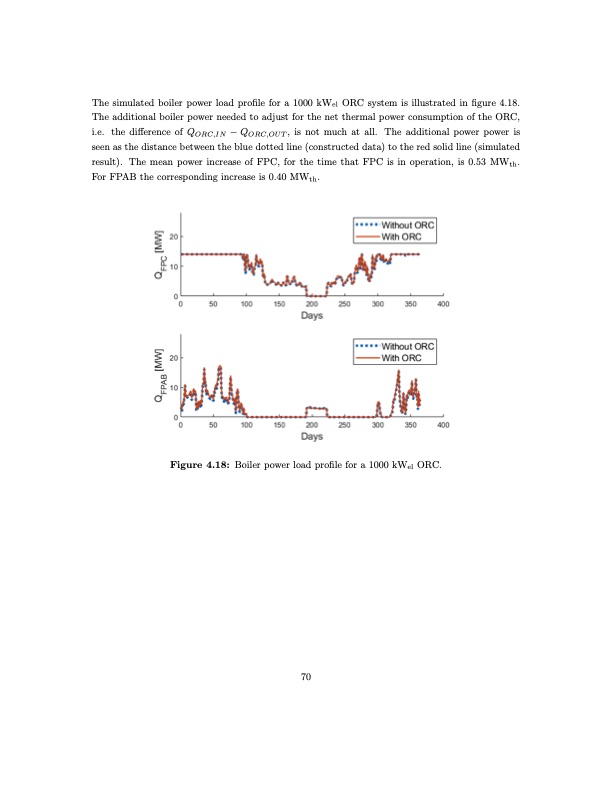

The simulated boiler power load profile for a 1000 kWel ORC system is illustrated in figure 4.18. The additional boiler power needed to adjust for the net thermal power consumption of the ORC, i.e. the difference of QORC,IN − QORC,OUT , is not much at all. The additional power power is seen as the distance between the blue dotted line (constructed data) to the red solid line (simulated result). The mean power increase of FPC, for the time that FPC is in operation, is 0.53 MWth. For FPAB the corresponding increase is 0.40 MWth. Figure 4.18: Boiler power load profile for a 1000 kWel ORC. 70PDF Image | Analysis of Organic Rankine Cycles for a Boiler Station
