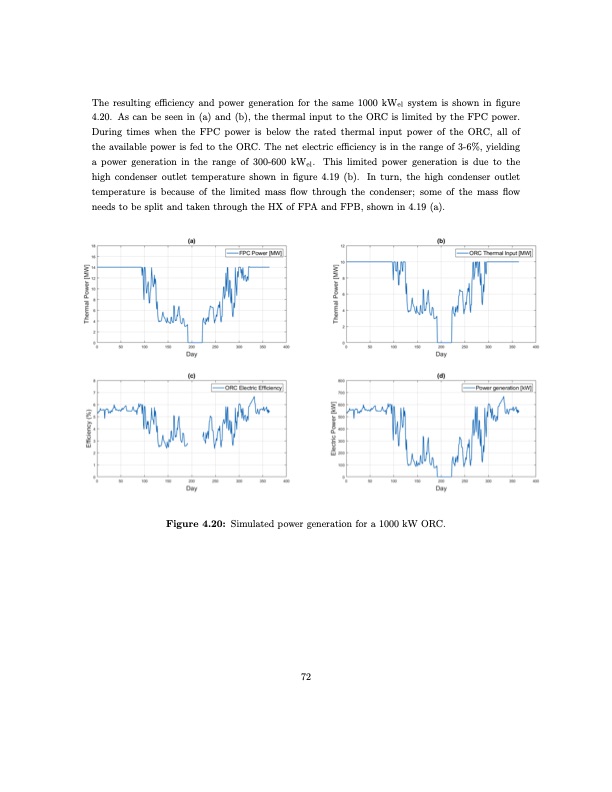

The resulting efficiency and power generation for the same 1000 kWel system is shown in figure 4.20. As can be seen in (a) and (b), the thermal input to the ORC is limited by the FPC power. During times when the FPC power is below the rated thermal input power of the ORC, all of the available power is fed to the ORC. The net electric efficiency is in the range of 3-6%, yielding a power generation in the range of 300-600 kWel. This limited power generation is due to the high condenser outlet temperature shown in figure 4.19 (b). In turn, the high condenser outlet temperature is because of the limited mass flow through the condenser; some of the mass flow needs to be split and taken through the HX of FPA and FPB, shown in 4.19 (a). Figure 4.20: Simulated power generation for a 1000 kW ORC. 72PDF Image | Analysis of Organic Rankine Cycles for a Boiler Station
