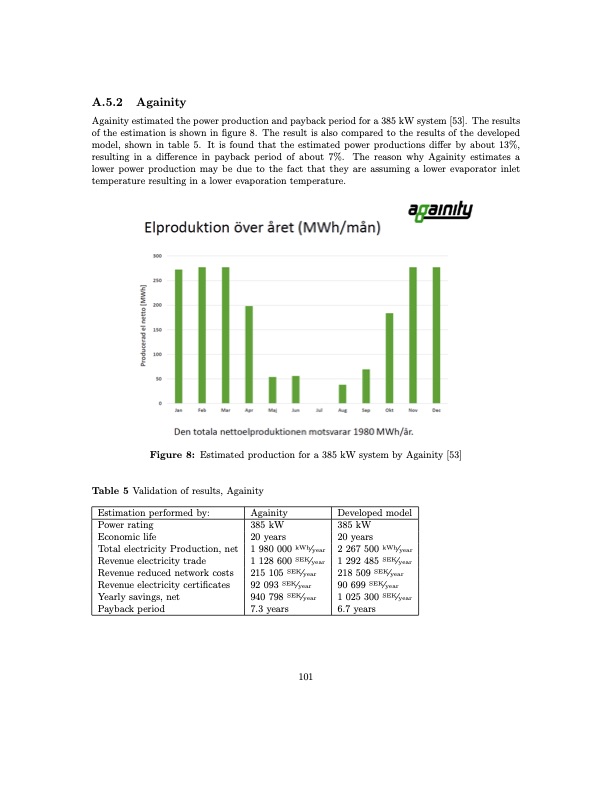

A.5.2 Againity Againity estimated the power production and payback period for a 385 kW system [53]. The results of the estimation is shown in figure 8. The result is also compared to the results of the developed model, shown in table 5. It is found that the estimated power productions differ by about 13%, resulting in a difference in payback period of about 7%. The reason why Againity estimates a lower power production may be due to the fact that they are assuming a lower evaporator inlet temperature resulting in a lower evaporation temperature. Figure 8: Estimated production for a 385 kW system by Againity [53] Table 5 Validation of results, Againity Estimation performed by: Power rating Economic life Total electricity Production, net Revenue electricity trade Revenue reduced network costs Revenue electricity certificates Yearly savings, net Payback period Againity 385 kW 20 years 1 980 000 kWh⁄year 1 128 600 SEK⁄year 215 105 SEK⁄year 92 093 SEK⁄year 940 798 SEK⁄year 7.3 years 101 Developed model 385 kW 20 years 2 267 500 kWh⁄year 1 292 485 SEK⁄year 218 509 SEK⁄year 90 699 SEK⁄year 1 025 300 SEK⁄year 6.7 yearsPDF Image | Analysis of Organic Rankine Cycles for a Boiler Station
