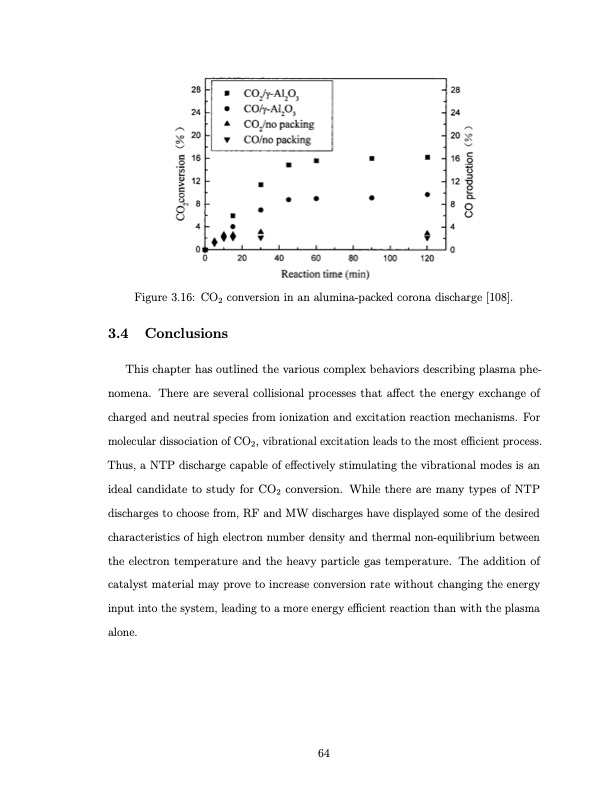

Figure 3.16: CO2 conversion in an alumina-packed corona discharge [108]. 3.4 Conclusions This chapter has outlined the various complex behaviors describing plasma phe- nomena. There are several collisional processes that affect the energy exchange of charged and neutral species from ionization and excitation reaction mechanisms. For molecular dissociation of CO2, vibrational excitation leads to the most efficient process. Thus, a NTP discharge capable of effectively stimulating the vibrational modes is an ideal candidate to study for CO2 conversion. While there are many types of NTP discharges to choose from, RF and MW discharges have displayed some of the desired characteristics of high electron number density and thermal non-equilibrium between the electron temperature and the heavy particle gas temperature. The addition of catalyst material may prove to increase conversion rate without changing the energy input into the system, leading to a more energy efficient reaction than with the plasma alone. 64PDF Image | CO2 Conversion in a Microwave Plasma Catalyst System
